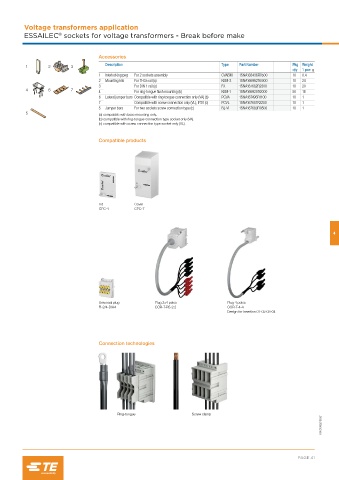

Voltage transformers application
®
ESSAILEC sockets for voltage transformers - Break before make

Accessories
Description Type Part Number Pkg Weight
1 2 3
qty 1 pce g
1 Interlocking peg For 2 sockets assembly CVABM 1SNA183436R0500 10 0.4
2 Mounting kits For TH35 rail (a) KEM-3 1SNA166962R0000 10 24
3 For DIN 1 rail (a) FX 1SNA167682R2300 10 20
4 6 7
4 For ring-tongue flush mounting (b) KEM-1 1SNA166928R2000 50 18
6 Lateral jumper bars Compatible with ring-tongue connection only (VA) (b) PCVA 1SNA167496R1100 10 1
7 Compatible with screw connection only (VL); IP20 (c) PCVL 1SNA167681R2200 10 1
5 Jumper bars For two sockets screw connection type (c) BJ-VL 1SNA167680R0500 10 1
5 (a) compatible with base mounting only.
(b) compatible with ring-tongue connection type socket only (VA).
(c) compatible with screw connection type socket only (VL).

Compatible products

Lid Cover
CPC-1 CPC-7

4

Universal plug Plug 2x4 poles Plug 4 poles
FI-2/4-DIA4 COR-T-R5-2.2 COR-T-4-4
Design for insertion 01-02-03-04

Connection technologies

Ring-tongue Screw clamp
1SNC169021S0201
