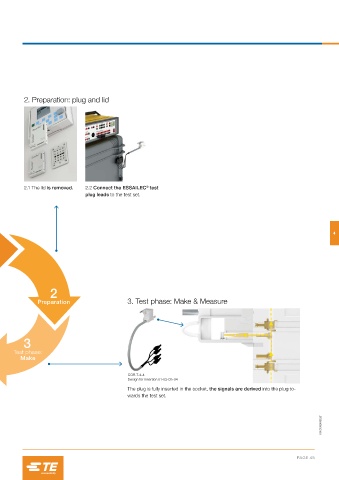

2. Preparation: plug and lid


















          2.1 The lid is removed.  2.2 Connect the ESSAILEC  test
                                                    ®
                               plug leads to the test set.





                                                                                                                      4











                   2

              Preparation                     3. Test phase: Make & Measure






         3

      Test phase:
        Make


                                              COR-T-4-4
                                              Design for insertion 01-02-03-04
                                              The plug is fully inserted in the socket, the signals are derived into the plug to-
                                              wards the test set.



                                                                                                                  1SNC169015S0201
