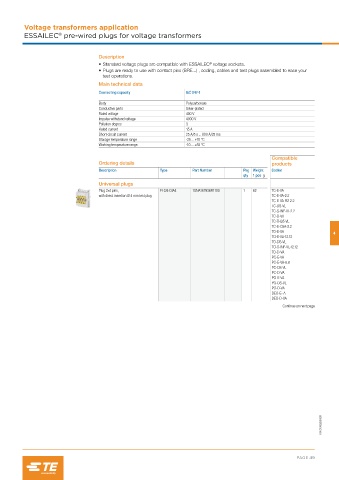

Page 51 - Essailec Test Blocks

Voltage transformers application
®
ESSAILEC pre-wired plugs for voltage transformers

Description
®
• Standard voltage plugs are compatible with ESSAILEC voltage sockets.
• Plugs are ready to use with contact pins (BRE...) , coding, cables and test plugs assembled to ease your
test operations.
Main technical data
Connecting capacity IEC 947-1
Body Polycarbonate
Conductive parts Silver-plated
Rated voltage 400 V
Impulse withstand voltage 4000 V
Pollution degree 3
Rated current 15 A
Short-circuit current 25 A/5 s ... 800 A/25 ms
Storage temperature range -25 ... +70 °C
Working temperature range -10 ... +55 °C

Compatible
Ordering details products
Description Type Part Number Pkg Weight Socket
qty 1 pce g
Universal plugs
Plug 2x4 pins, FI-2/4-DIA4 1SNA167936R1100 1 62 TC-E-VA
with direct insertion Ø 4 mm test plug TC-E-VA-2.2
TC-E-VA-R2-2.2
TC-DS-VL
TC-S-INF-VL-2.2
TC-D-VA
TC-TH35-VL
TC-E-C5A-2.2
TO-E-VA 4
TO-E-VA-12.12
TO-DS-VL
TO-S-INF-VL-12.12
TO-D-VA
PC-E-VA
PC-E-VA-8.8
PC-DS-VL
PC-D-VA
PO-E-VA
PO-DS-VL
PO-D-VA
DEO-E- A
DEO-D-VA
Continue on next page
