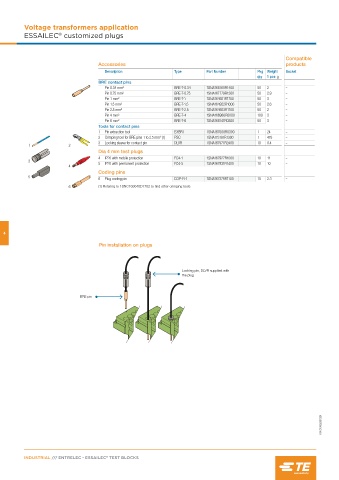

Page 56 - Essailec Test Blocks

Voltage transformers application
®
ESSAILEC customized plugs

Compatible
Accessories products
Description Type Part Number Pkg Weight Socket
qty 1 pce g
BRE contact pins
Pin 0.34 mm² BRE-T-0.34 1SNA168160R1400 50 2 –
Pin 0.75 mm² BRE-T-0.75 1SNA167779R1300 50 2.9 –
Pin 1 mm² BRE-T-1 1SNA164921R1700 50 3 –
Pin 1.5 mm² BRE-T-1.5 1SNA164922R1000 50 2.6 –
Pin 2.5 mm² BRE-T-2.5 1SNA164923R1100 50 2 –
Pin 4 mm² BRE-T-4 1SNA166980R0000 100 3 –
Pin 6 mm² BRE-T-6 1SNA168147R0300 50 3 –
Tools for contact pins
1 Pin extraction tool EXBR1 1SNA167008R0300 1 24 –
2 Crimping tool for BRE pins 1 to 2.5 mm² (1) PSC 1SNA173181R1300 1 478 –
3 Locking sleeve for contact pin DLVR 1SNA167971R2400 10 0.4 –
1 2
Dia 4 mm test plugs
4 IP20 with mobile protection FC4-1 1SNA167927R1000 10 11 –
3 5 IP20 with permanent protection FC4-5 1SNA167931R1400 10 10 –
4
Coding pins
5
6 Plug coding pin COP-FI-1 1SNA167378R1100 10 2.3 –
6 (1) Refering to 1SNC169040D1702 to find other crimping tools

4

Pin installation on plugs

Locking pin, DLVR supplied with
the plug

BRE pin

1SNC169026S0201 1SNC169026S0201

®
INDUSTRIAL /// ENTRELEC - ESSAILEC TEST BLOCKS
