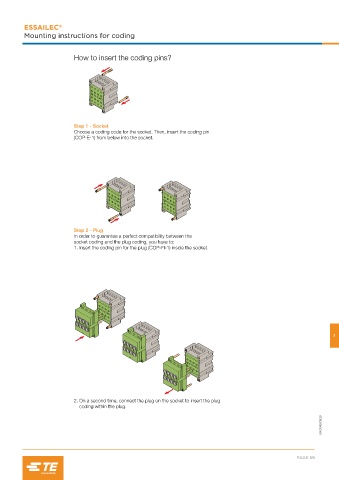

ESSAILEC ®
Mounting instructions for coding

How to insert the coding pins?

Step 1 - Socket
Choose a coding code for the socket. Then, insert the coding pin
(COP-E-1) from below into the socket.

Step 2 - Plug
In order to guarantee a perfect compatibility between the
socket coding and the plug coding, you have to:
1. Insert the coding pin for the plug (COP-FI-1) inside the socket.

7

2. On a second time, connect the plug on the socket to insert the plug
coding within the plug.
