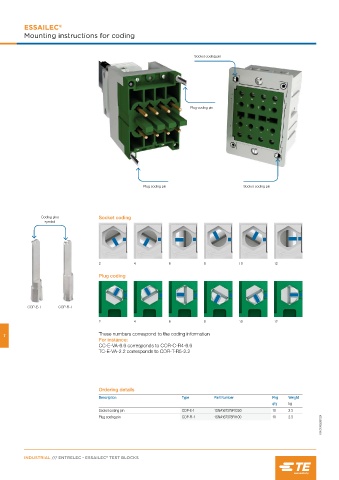

Page 60 - Essailec Test Blocks

ESSAILEC ®
Mounting instructions for coding

Socket coding pin

Plug coding pin

Plug coding pin Socket coding pin

Coding pins Socket coding
symbol

2 4 6 8 10 12
Plug coding

COP-E-1 COP-FI-1

2 4 6 8 10 12

7 These numbers correspond to the coding information
For instance:
CC-E-VA-6.6 corresponds to COR-C-R4-6.6
TC-E-VA-2.2 corresponds to COR-T-R5-2.2

Ordering details
Description Type Part Number Pkg Weight
qty kg
Socket coding pin COP-E-1 1SNA167379R1200 10 2.3
1SNC169029S0201
Plug coding pin COP-FI-1 1SNA167378R1100 10 2.3

®
INDUSTRIAL /// ENTRELEC - ESSAILEC TEST BLOCKS
