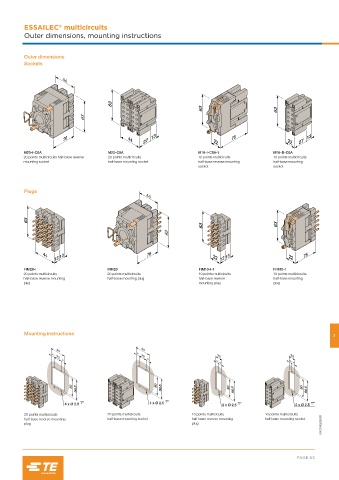

ESSAILEC multicircuits
Outer dimensions, mounting instructions
Outer dimensions
Sockets
63
63 63
76 27 13 22 75 22 27 13
M20-I-C5A M20-C5A M10-I-C5A-1 M10-D-C5A
20 points multicircuits half-base reverse 20 points multicircuits 10 points multicicuits 10 points multicircuits
mounting socket half-base mounting socket half-base reverse mounting half-base mounting
socket socket
Plugs
63
63 63
12 13 76 22 12 13 22 75
FIM20-I FIM20 FIM10-I-1 FIM10-1
20 points multicircuits 20 points multicircuits 10 points multicicuits 10 points multicircuits
half-base reverse mounting half-base mounting plug half-base reverse half-base mounting
plug mounting plug plug
Mounting instructions 7
= =
22 22 = 22 22
= = =
= =
50 56.5 50 56.5 50 56.5 50 56.5
4 x Ø 2.5 4 x Ø 2.5 2 x Ø 2.5 2 x Ø 2.5
20 points multicircuits 20 points multicircuits 10 points multicicuits 10 points multicircuits
1SNC169022S0201
half-base reverse mounting half-base mounting socket half-base reverse mounting half-base mounting socket
plug plug
