ESSAILEC ®

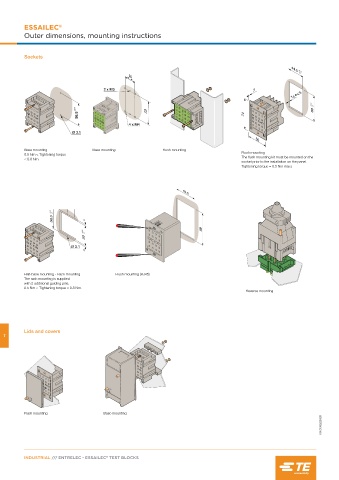

Outer dimensions, mounting instructions
Sockets
2 x M3 35 = =
±0.1 73
56.5
4 x M4
Ø 3.1
Base mounting Base mounting Flush mounting
Flush mounting
0.5 Nm < Tightening torque
The flush mounting kit must be mounted on the
< 0.8 Nm.
socket prior to the installation on the panel.
Tightening torque = 0.5 Nm maxi.
44.5
89
Half-base mounting - Rack mounting Flush mounting (RJ45)
The rack mounting is supplied
with 2 additional guiding pins.
0.5 Nm < Tightening torque < 0.8 Nm.
Reverse mounting
Lids and covers
7
Flush mounting Base mounting
1SNC169022S0201
