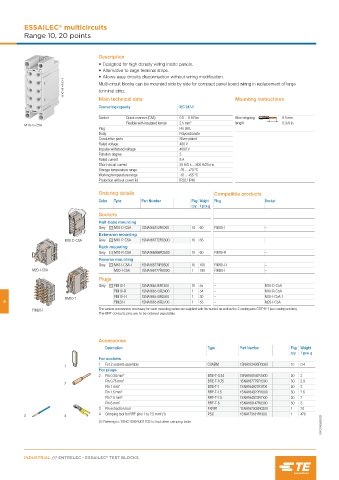

ESSAILEC multicircuits
®
Range 10, 20 points

Description
• Designed for high density wiring inside panels.
• Alternative to large terminal strips.
• Allows easy circuits disconnection without wiring modification.
1SNC169118V0014 Multi-circuit blocks can be mounted side by side for compact panel board wiring in replacement of large

terminal strip.
Main technical data Mounting instructions
Connecting capacity IEC 947-1

Socket Quick connect (C5A) 0.5 ... 0.8 Nm Wire stripping 9.5 mm
Flexible with insulated ferrule 2.5 mm² length 0.370 in
M10-D-C5A
Plug Pin BRE
Body Polycarbonate
Conductive parts Silver-plated
Rated voltage 400 V
Impulse withstand voltage 4000 V
Pollution degree 3
Rated current 8 A
Short-circuit current 25 A/5 s ... 800 A/25 ms
Storage temperature range -25 ... +70 °C
Working temperature range -10 ... +55 °C
Protection without cover/ lid IP20 / IP40

Ordering details Compatible products
Color Type Part Number Pkg Weight Plug Socket
qty 1 pce g
Sockets
Half-base mounting
Grey M10-D-C5A 1SNA166513R1000 10 60 FIM10-1 –
Extension mounting
M10-D-C5A Grey M10-P-C5A 1SNA166772R0300 10 66 – –
Rack mounting
Grey M10-R-C5A 1SNA166566R2500 10 60 FIM10-R –
Reverse mounting
Grey M10-I-C5A-1 1SNA166774R0500 10 100 FIM10-I-1 –
M20-I-C5A M20-I-C5A 1SNA166777R0000 1 190 FIM20-I –
Plugs
Grey FIM10-1 1SNA166516R1300 10 55 – M10-D-C5A
FIM10-R 1SNA166573R2400 1 54 – M10-R-C5A
FIM10-I-1 1SNA166574R2500 1 30 – M10-I-C5A-1
FIM10-1
6 FIM20-I 1SNA166576R2700 1 53 – M20-I-C5A
FIM20-I The various accessories necessary for each mounting option are supplied with the socket as well as the 2 coding pins COP-E-1 (see coding section).
The BRT contacts pins are to be ordered separately.

Accessories
Description Type Part Number Pkg Weight
qty 1 pce g
For sockets
1 For 2 sockets assembly CVABM 1SNA183436R0500 10 0.4
1
For plugs
2 Pin 0.34 mm² BRE-T-0.34 1SNA168160R1400 50 2
Pin 0.75 mm² BRE-T-0.75 1SNA167779R1300 50 2.9
2
Pin 1 mm² BRE-T-1 1SNA164921R1700 50 3
Pin 1.5 mm² BRE-T-1.5 1SNA164922R1000 50 2.6
Pin 2.5 mm² BRE-T-2.5 1SNA164923R1100 50 2
Pin 6 mm² BRE-T-6 1SNA168147R0300 50 3
3 Pin extraction tool EXBR1 1SNA167008R0300 1 24
4 Crimping tool for BRE pins 1 to 2.5 mm² (1) PSC 1SNA173181R1300 1 478
3 4
1SNC169028S0201
(1) Refering to 1SNC169040D1702 to find other crimping tools

®
