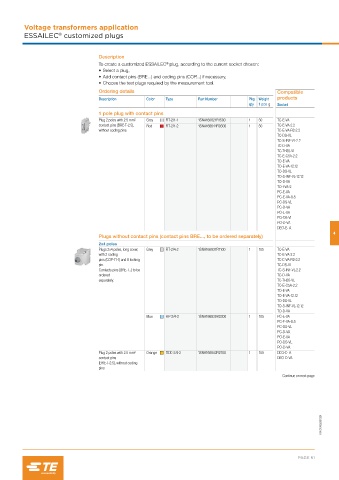

Voltage transformers application
®
ESSAILEC customized plugs

Description
®
To create a customized ESSAILEC plug, according to the current socket chosen:
• Select a plug,
• Add contact pins (BRE...) and coding pins (COP...) if necessary,
• Choose the test plugs required by the measurement tool.
Ordering details Compatible
Description Color Type Part Number Pkg Weight products
qty 1 pce g Socket
1 pole plug with contact pins
Plug 2 poles with 2.5 mm² Grey FIT-2/1-1 1SNA166821R1500 1 30 TC-E-VA
contact pins (BRE-T-2.5), Red FIT-2/1-2 1SNA166644R0300 1 30 TC-E-VA-2.2
without coding pins TC-E-VA-R2-2.2
TC-DS-VL
TC-S-INF-VL-2.2
TC-D-VA
TC-TH35-VL
TC-E-C5A-2.2
TO-E-VA
TO-E-VA-12.12
TO-DS-VL
TO-S-INF-VL-12.12
TO-D-VA
TO-I-VA-2
PC-E-VA
PC-E-VA-8.8
PC-DS-VL
PC-D-VA
PO-E-VA
PO-DS-VL
PO-D-VA
DEO-E- A
4
Plugs without contact pins (contact pins BRE..., to be ordered separately)
2x4 poles
Plugs 2x4 poles, long cover, Grey FIT-2/4-2 1SNA166937R1100 1 105 TC-E-VA
with 2 coding TC-E-VA-2.2
pins (COP-FI-1) and 8 locking TC-E-VA-R2-2.2
pin. TC-DS-VL
Contacts pins (BRE-T...) to be TC-S-INF-VL-2.2
ordered TC-D-VA
separately. TC-TH35-VL
TC-E-C5A-2.2
TO-E-VA
TO-E-VA-12.12
TO-DS-VL
TO-S-INF-VL-12.12
TO-D-VA
Blue FIP-2/4-2 1SNA166939R2300 1 105 PC-E-VA
PC-E-VA-8.8
PC-DS-VL
PC-D-VA
PO-E-VA
PO-DS-VL
PO-D-VA
Plug 2 poles with 2.5 mm² Orange FIDE-2/4-2 1SNA166943R2700 1 105 DEO-E- A
contact pins DEO-D-VA
(BRE-T-2.5), without coding
pins
Continue on next page
