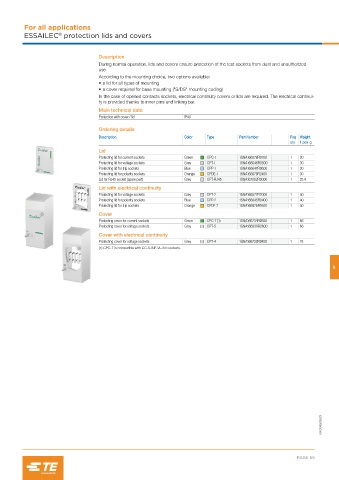

Page 57 - Essailec Test Blocks

For all applications
®
ESSAILEC protection lids and covers

Description
During normal operation, lids and covers ensure protection of the test sockets from dust and unauthorized
use.
According to the mounting choice, two options available:
• a lid for all types of mounting
• a cover required for base mounting ("S/DS" mounting coding)
In the case of opened contacts sockets, electrical continuity covers or lids are required. The electrical continui-
ty is provided thanks to inner pins and linking bar.
Main technical data
Protection with cover / lid IP40

Ordering details
Description Color Type Part Number Pkg Weight
qty 1 pce g
Lid
Protecting lid for current sockets Green CPC-1 1SNA166578R0100 1 30
Protecting lid for voltage sockets Grey CPT-1 1SNA166646R0500 1 30
Protecting lid for trip sockets Blue CPP-1 1SNA166647R0600 1 30
Protecting lid for polarity sockets Orange CPDE-1 1SNA166876R2400 1 30
Lid for RJ45 socket (spare part) Grey CPT-RJ45 1SNA167002R0000 1 25.4
Lid with electrical continuity
Protecting lid for voltage sockets Grey CPT-2 1SNA166577R2000 1 40
Protecting lid for polarity sockets Blue CPP-2 1SNA166645R0400 1 40
Protecting lid for trip sockets Orange CPDE-2 1SNA166926R1600 1 40
Cover
Protecting cover for current sockets Green CPC-7 (1) 1SNA166734R2500 1 66
Protecting cover for voltage sockets Grey CPT-5 1SNA166930R2600 1 66
Cover with electrical continuity
Protecting cover for voltage sockets Grey CPT-4 1SNA166733R2400 1 78
(1) CPC-7 is compatible with CC-S-INF-VL-6.6 sockets.

5
