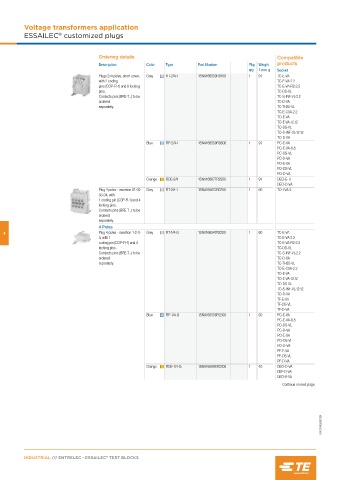

Voltage transformers application
®
ESSAILEC customized plugs

Ordering details Compatible
Description Color Type Part Number Pkg Weight products
qty 1 pce g Socket
Plugs 2x4 poles, short cover, Grey FIT-2/4-1 1SNA166550R0100 1 91 TC-E-VA
with 2 coding TC-E-VA-2.2
pins (COP-FI-1) and 8 locking TC-E-VA-R2-2.2
pins. TC-DS-VL
Contacts pins (BRE-T...) to be TC-S-INF-VL-2.2
ordered TC-D-VA
separately. TC-TH35-VL
TC-E-C5A-2.2
TO-E-VA
TO-E-VA-12.12
TO-DS-VL
TO-S-INF-VL-12.12
TO-D-VA
Blue FIP-2/4-1 1SNA166559R0600 1 91 PC-E-VA
PC-E-VA-8.8
PC-DS-VL
PC-D-VA
PO-E-VA
PO-DS-VL
PO-D-VA
Orange FIDE-2/4 1SNA166877R2500 1 91 DEO-E- A
DEO-D-VA
Plug 4 poles - insertion 01-02- Grey FIT-2/4-I 1SNA166672R0700 1 60 TO-I-VA-2
03-04, with
1 coding pin (COP-FI-1) and 4
locking pins.
Contacts pins (BRE-T...) to be
ordered
separately.
4 Poles
4 Plug 4 poles - insertion 1-2-3- Grey FIT-1/4-G 1SNA166547R2200 1 60 TC-E-VA
4, with 1 TC-E-VA-2.2
coding pin (COP-FI-1) and 4 TC-E-VA-R2-2.2
locking pins. TC-DS-VL
Contacts pins (BRE-T...) to be TC-S-INF-VL-2.2
ordered TC-D-VA
separately. TC-TH35-VL
TC-E-C5A-2.2
TO-E-VA
TO-E-VA-12.12
TO-DS-VL
TO-S-INF-VL-12.12
TO-D-VA
TF-E-VA
TF-DS-VL
TF-D-VA
Blue FIP-1/4-G 1SNA166556R2300 1 60 PC-E-VA
PC-E-VA-8.8
PC-DS-VL
PC-D-VA
PO-E-VA
PO-DS-VL
PO-D-VA
PF-E-VA
PF-DS-VL
PF-D-VA
Orange FIDE-1/4-G 1SNA166898R2300 1 40 DEO-D-VA
DEF-D-VA
DEO-E-VA
Continue on next page
