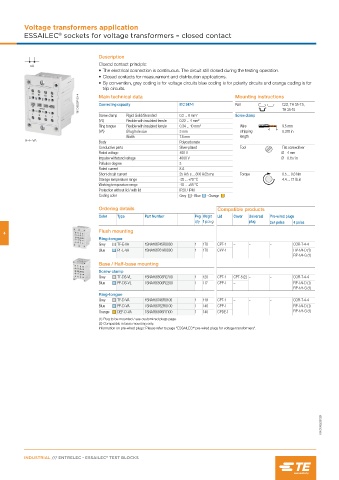

Page 48 - Essailec Test Blocks

Voltage transformers application
®
ESSAILEC sockets for voltage transformers – closed contact

Description
Closed contact principle:
x4
• The electrical connection is continuous. The circuit still closed during the testing operation.
• Closed contacts for measurement and distribution applications.
• By convention, grey coding is for voltage circuits blue coding is for polarity circuits and orange coding is for
trip circuits.
1SNC169297V0014 Main technical data IEC 947-1 Mounting instructions G32, TH 35-7.5,
Connecting capacity
Rail
TH 35-15
Screw clamp Rigid: Solid/Stranded 0.2 ... 6 mm² Screw clamp
(VL) Flexible with insulated ferrule 0.22 ... 4 mm²
Ring tongue Flexible with insulated ferrule 0.34 ... 10 mm² Wire 9.5 mm
(VA) Ø lug hole size 3 mm stripping 0.370 in
Width 7.5 mm length
TF-E-VA
Body Polycarbonate
Conductive parts Silver-plated Tool Flat screwdriver
Rated voltage 400 V Ø 4 mm
Impulse withstand voltage 4000 V Ø 0.157 in
Pollution degree 3
Rated current 8 A
Short-circuit current 25 A/5 s ... 800 A/25 ms Torque 0.5 ... 0.8 Nm
Storage temperature range -25 ... +70 °C 4.4 ... 7.1 lb.in
Working temperature range -10 ... +55 °C
Protection without lid / with lid IP20 / IP40
Coding color Grey - Blue - Orange

Ordering details Compatible products
Color Type Part Number Pkg Weight Lid Cover Universal Pre-wired plugs
qty 1 pce g plug 2x4 poles 4 poles
4 Flush mounting
Ring-tongue
Grey TF-E-VA 1SNA166745R0000 1 170 CPT-1 – – – COR-T-4-4
Blue PF-E-VA 1SNA166761R0000 1 170 CPP-1 FIP-1/4-D (1)
FIP-1/4-G (1)
Base / Half-base mounting
Screw clamp
Grey TF-DS-VL 1SNA166503R2700 1 120 CPT-1 CPT-5 (2) – – COR-T-4-4
Blue PF-DS-VL 1SNA166506R2200 1 117 CPP-1 – FIP-1/4-D (1)
FIP-1/4-G (1)
Ring-tongue
Grey TF-D-VA 1SNA166746R0100 1 119 CPT-1 – – – COR-T-4-4
Blue PF-D-VA 1SNA166762R0100 1 140 CPP-1 FIP-1/4-D (1)
Orange DEF-D-VA 1SNA166896R1100 1 140 CPDE-1 FIP-1/4-G (1)
(1) Plug to be mounted / see customized plugs page.
(2) Compatible in base mounting only.
Information on pre-wired plugs: Please refer to page "ESSAILEC ® pre-wired plugs for voltage transformers".

1SNC169023S0201

®
INDUSTRIAL /// ENTRELEC - ESSAILEC TEST BLOCKS
