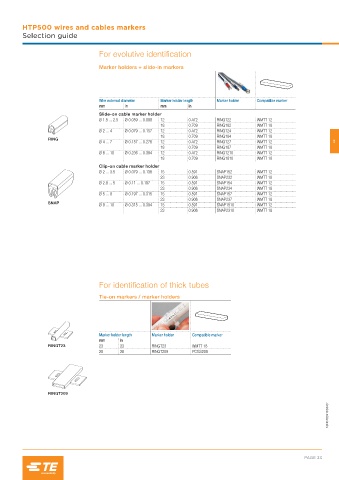

Page 1065 - Entrelec Terminal Blocks Master Catalog

HTP500 wires and cables markers
Selection guide

For evolutive identification

Marker holders + slide-in markers

Wire external diameter Marker holder length Marker holder Compatible marker
mm in mm in
Slide-on cable marker holder
Ø 1.5 ... 2.5 Ø 0.059 ... 0.098 12 0.472 RING122 WMTT 12
18 0.709 RING182 WMTT 18
Ø 2 ... 4 Ø 0.079 ... 0.157 12 0.472 RING124 WMTT 12
18 0.709 RING184 WMTT 18
RING
Ø 4 ... 7 Ø 0.157 ... 0.276 12 0.472 RING127 WMTT 12 2
18 0.709 RING187 WMTT 18
Ø 6 ... 10 Ø 0.236 ... 0.394 12 0.472 RING1210 WMTT 12
18 0.709 RING1810 WMTT 18
Clip-on cable marker holder
Ø 2 ... 3.5 Ø 0.079 ... 0.138 15 0.591 SNAP152 WMTT 12
23 0.906 SNAP232 WMTT 18
Ø 2.8 ... 5 Ø 0.11 ... 0.197 15 0.591 SNAP154 WMTT 12
23 0.906 SNAP234 WMTT 18
Ø 5 ... 8 Ø 0.197 ... 0.315 15 0.591 SNAP157 WMTT 12
23 0.906 SNAP237 WMTT 18
SNAP
Ø 8 ... 10 Ø 0.315 ... 0.394 15 0.591 SNAP1510 WMTT 12
23 0.906 SNAP2310 WMTT 18

For identification of thick tubes

Tie-on markers / marker holders

Marker holder length Marker holder Compatible marker
mm in
RINGT23 23 23 RINGT23 WMTT 18
28 28 RINGT209 PCGS209

RINGT209
1SNC160210S0201
