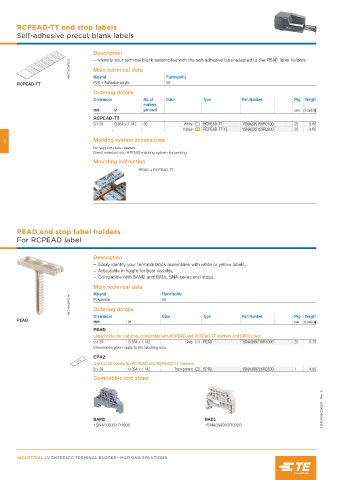

Page 1062 - Entrelec Terminal Blocks Master Catalog

RCPEAD-TT end stop labels
Self-adhesive precut blank labels

Description
– Identify your terminal block assemblies with the self-adhesive label adapted to the PEAD label holders.
1SNC700302F0000 Main technical data
Material
V0
PVC + Adhesive acrylic Flammability
RCPEAD-TT
Ordering details
Dimensions Nb. of Color Type Part Number Pkg Weight
markers
mm in per card card (1 card) g
RCPEAD-TT
9 x 29 0.354 x 1.142 36 White RCPEAD-TT 1SNA235158R0100 25 9.80
Yellow RCPEAD-TT-YL 1SNA235159R0200 25 9.60
2 Marking system accessories
No support plate needed.
Direct insertion into HTP500 marking system for printing.
Mounting instruction
PEAD + RCPEAD-TT

PEAD end stop label holders
For RCPEAD label

Description
– Easily identify your terminal block assemblies with white or yellow labels,
– Adjustable in height for best visibility,
– Compatible with BAM2 and BADL SNA series end stops.
Main technical data
Material Flammability
1SNC160058F0014 Polyamide V0
Ordering details
Dimensions Color Type Part Number Pkg Weight
PEAD mm in pce (1 pce) g
PEAD
Label holder for end stop, compatible with RCPEAD and RCEPAD-TT markers and EPR2 cover.
9 x 29 0.354 x 1.142 Grey PEAD 1SNA399719R1000 20 0.78
Dimensions given apply to the labelling area.
EPR2
Card of 20 covers for RCPEAD and RCPEAD-TT markers
9 x 29 0.354 x 1.142 Transparent EPR2 1SNA399726R0700 1 4.00
Compatible end stops

1SNC160202S0201 - Rev. A

BAM2 BADL
1SNA206351R1600 1SNA399903R0200
