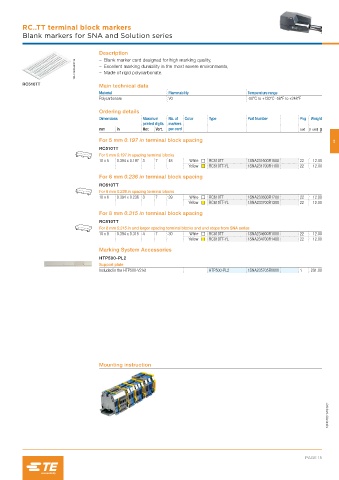

Page 1057 - Entrelec Terminal Blocks Master Catalog

RC..TT terminal block markers
Blank markers for SNA and Solution series

Description
– Blank marker card designed for high marking quality,
1SNC160246F0014 – Excellent marking durability in the most severe environments,
– Made of rigid polycarbonate.
RC510TT
Main technical data
Material Flammability Temperature range
Polycarbonate V0 -50°C to +120°C -58°F to +248°F

Ordering details
Dimensions Maximum Nb. of Color Type Part Number Pkg Weight
printed digits markers
mm in Hor. Vert. per card card (1 card) g
For 5 mm 0.197 in terminal block spacing 2
RC510TT
For 5 mm 0.197 in spacing terminal blocks
10 x 5 0.394 x 0.197 3 7 48 White RC510TT 1SNA231600R1500 22 12.00
Yellow RC510TT-YL 1SNA231700R1100 22 12.00
For 6 mm 0.236 in terminal block spacing
RC610TT
For 6 mm 0.236 in spacing terminal blocks
10 x 6 0.394 x 0.236 3 7 39 White RC610TT 1SNA233600R1700 22 12.00
Yellow RC610TT-YL 1SNA233700R1300 22 12.00
For 8 mm 0.315 in terminal block spacing
RC810TT
For 8 mm 0.315 in and larger spacing terminal blocks and end stops from SNA series
10 x 8 0.394 x 0.315 4 7 30 White RC810TT 1SNA234600R1000 22 12.00
Yellow RC810TT-YL 1SNA234700R1400 22 12.00
Marking System Accessories
HTP500-PL2
Support plate
Included in the HTP500-V2 kit HTP500-PL2 1SNA235705R0600 1 291.00

Mounting instruction

1SNC160191S0201
