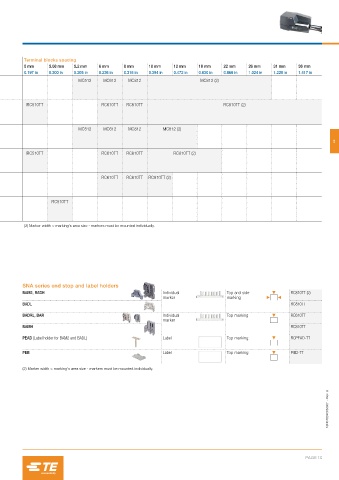

Page 1055 - Entrelec Terminal Blocks Master Catalog

Terminal blocks spacing
5 mm 5.08 mm 5.2 mm 6 mm 8 mm 10 mm 12 mm 16 mm 22 mm 26 mm 31 mm 36 mm
0.197 in 0.200 in 0.205 in 0.236 in 0.315 in 0.394 in 0.472 in 0.630 in 0.866 in 1.024 in 1.220 in 1.417 in
MC512 MC612 MC812 MC812 (2)

RC510TT RC610TT RC810TT RC810TT (2)

MC512 MC612 MC812 MC812 (2)
2

RC510TT RC610TT RC810TT RC810TT (2)

RC610TT RC810TT RC810TT (2)

RC510TT

(2) Marker width < marking's area size - markers must be mounted individually.

SNA series end stop and label holders
BAM2, BADH Individual Top and side RC810TT (2)
marker marking
BADL RC810TT

BADRL, BAR Individual Top marking RC610TT
marker
BAMH RC810TT

PEAD (Label holder for BAM2 and BADL) Label Top marking RCPEAD-TT

PEB Label Top marking PIB2-TT

(2) Marker width < marking's area size - markers must be mounted individually.

1SNC160209S0201 - Rev. A

PAGE 13
