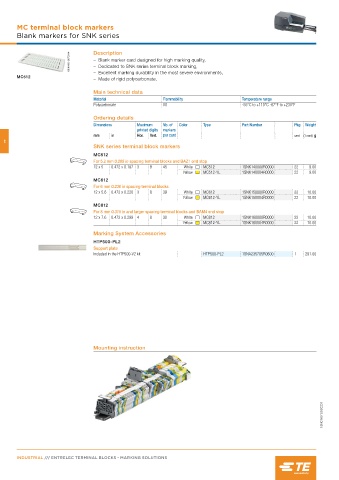

Page 1056 - Entrelec Terminal Blocks Master Catalog

MC terminal block markers
Blank markers for SNK series

1SNK160156F0014 Description
– Blank marker card designed for high marking quality,
– Dedicated to SNK series terminal block marking,
– Excellent marking durability in the most severe environments,
MC512
– Made of rigid polycarbonate.
Main technical data
Material Flammability Temperature range
Polycarbonate V0 -55°C to +110°C -67°F to +230°F
Ordering details
Dimensions Maximum Nb. of Color Type Part Number Pkg Weight
printed digits markers
mm in Hor. Vert. per card card (1 card) g
2
SNK series terminal block markers
MC512
For 5.2 mm 0.205 in spacing terminal blocks and BAZ1 end stop
12 x 5 0.472 x 0.197 3 8 45 White MC512 1SNK140000R0000 22 9.00
Yellow MC512-YL 1SNK140004R0000 22 9.00
MC612
For 6 mm 0.236 in spacing terminal blocks
12 x 5.6 0.472 x 0.220 3 8 39 White MC612 1SNK150000R0000 22 10.00
Yellow MC612-YL 1SNK150004R0000 22 10.00
MC812
For 8 mm 0.315 in and larger spacing terminal blocks and BAM4 end stop
12 x 7.6 0.472 x 0.299 4 8 30 White MC812 1SNK160000R0000 22 10.00
Yellow MC812-YL 1SNK160004R0000 22 10.00

Marking System Accessories
HTP500-PL2
Support plate
Included in the HTP500-V2 kit HTP500-PL2 1SNA235705R0600 1 291.00

Mounting instruction

1SNC160190S0201
