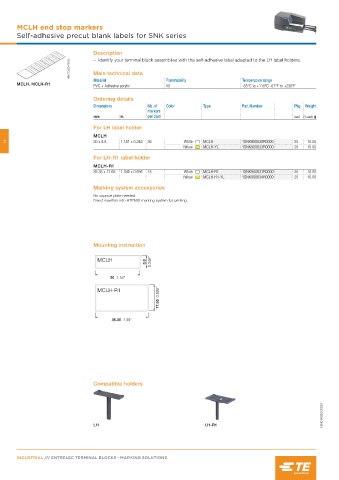

Page 1060 - Entrelec Terminal Blocks Master Catalog

MCLH end stop markers
Self-adhesive precut blank labels for SNK series

Description
– Identify your terminal block assemblies with the self-adhesive label adapted to the LH label holders.
1SNC700301F0000 Main technical data

Material Flammability Temperature range
MCLH, MCLH-R1
PVC + Adhesive acrylic V0 -55°C to +110°C -67°F to +230°F
Ordering details
Dimensions Nb. of Color Type Part Number Pkg Weight
markers
mm in per card card (1 card) g

For LH label holder
MCLH
2 30 x 8.8 1.181 x 0.346 36 White MCLH 1SNK900630R0000 25 10.00
Yellow MCLH-YL 1SNK900633R0000 25 10.00
For LH-R1 label holder
MCLH-R1
35.35 x 17.65 1.392 x 0.695 15 White MCLH-R1 1SNK900631R0000 25 10.00
Yellow MCLH-R1-YL 1SNK900634R0000 25 10.00

Marking system accessories
No support plate needed.
Direct insertion into HTP500 marking system for printing.

Mounting instruction

MCLH
8.8 0.346"
30 1.18"

17.65 0.695"
MCLH-R1

35.35 1.39"

Compatible holders

1SNC160200S0201

LH LH-R1

INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
