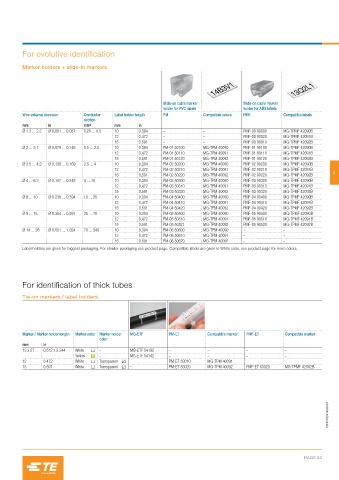

Page 1095 - Entrelec Terminal Blocks Master Catalog

For evolutive identification

Marker holders + slide-in markers

14B3V1 13Q2L1

Slide-on cable marker Slide-on cable marker
holder for PVC labels holder for ABS labels
Wire external diameter Conductor Label holder length PM Compatible labels PMF Compatible labels
section
mm in mm² mm in
Ø 1.3 ... 2.2 Ø 0.051 ... 0.087 0.25 ... 0.5 10 0.394 – – PMF-00 90000 MG-TPMF 42090B
12 0.472 – – PMF-00 90020 MG-TPMF 42091B
15 0.591 – – PMF-00 90010 MG-TPMF 42092B
Ø 2 ... 3.7 Ø 0.079 ... 0.146 0.5 ... 2.5 10 0.394 PM-01 50100 MG-TPM 40090 PMF-01 90100 MG-TPMF 42090B
12 0.472 PM-01 50110 MG-TPM 40091 PMF-01 90110 MG-TPMF 42091B
15 0.591 PM-01 50120 MG-TPM 40092 PMF-01 90120 MG-TPMF 42092B
Ø 3.5 ... 4.3 Ø 0.138 ... 0.169 2.5 ... 4 10 0.394 PM-02 50200 MG-TPM 40090 PMF-02 90200 MG-TPMF 42090B
12 0.472 PM-02 50210 MG-TPM 40091 PMF-02 90210 MG-TPMF 42091B
15 0.591 PM-02 50220 MG-TPM 40092 PMF-02 90220 MG-TPMF 42092B 3
Ø 4 ... 6.3 Ø 0.157 ... 0.248 4 ... 10 10 0.394 PM-03 50300 MG-TPM 40090 PMF-03 90300 MG-TPMF 42090B
12 0.472 PM-03 50310 MG-TPM 40091 PMF-03 90310 MG-TPMF 42091B
15 0.591 PM-03 50320 MG-TPM 40092 PMF-03 90320 MG-TPMF 42092B
Ø 6 ... 10 Ø 0.236 ... 0.394 10 ... 25 10 0.394 PM-04 50400 MG-TPM 40090 PMF-04 90400 MG-TPMF 42090B
12 0.472 PM-04 50410 MG-TPM 40091 PMF-04 90410 MG-TPMF 42091B
15 0.591 PM-04 50420 MG-TPM 40092 PMF-04 90420 MG-TPMF 42092B
Ø 9 ... 15 Ø 0.354 ... 0.591 25 ... 70 10 0.394 PM-05 50500 MG-TPM 40090 PMF-05 90500 MG-TPMF 42090B
12 0.472 PM-05 50510 MG-TPM 40091 PMF-05 90510 MG-TPMF 42091B
15 0.591 PM-05 50521 MG-TPM 40092 PMF-05 90520 MG-TPMF 42092B
Ø 14 ... 26 Ø 0.551 ... 1.024 70 ... 240 10 0.394 PM-06 50600 MG-TPM 40090 – –
12 0.472 PM-06 50610 MG-TPM 40091 – –
15 0.591 PM-06 50620 MG-TPM 40092 – –
Label holders are given for biggest packaging. For smaller packaging see product page. Compatible labels are given in White color, see product page for more colors.

For identification of thick tubes

Tie-on markers / label holders

Marker / Marker holder length Marker color Marker holder MG-ETF PM-ET Compatible marker PMF-ET Compatible marker
color
mm in
13 x 57 0.512 x 2.244 White – MG-ETF 54192 – – – –
Yellow – MG-ETF 54142 – – – –
12 0.472 White Transparent – PM-ET 53010 MG-TPM 40091 – –
15 0.591 White Transparent – PM-ET 53020 MG-TPM 40092 PMF-ET 63020 MG-TPMF 42092B

1SNC160214S0201

PAGE 53
