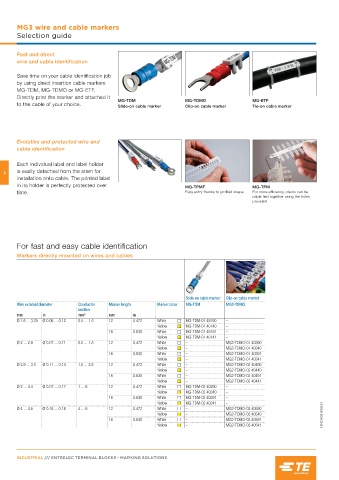

Page 1094 - Entrelec Terminal Blocks Master Catalog

MG3 wire and cable markers
Selection guide

Fast and direct
wire and cable identification

Save time on your cable identification job
by using direct insertion cable markers
MG-TDM, MG-TDMO or MG-ETF.
Directly print the marker and attached it
MG-TDM MG-TDMO MG-ETF
to the cable of your choice.
Slide-on cable marker Clip-on cable marker Tie-on cable marker

Evolutive and protected wire and
cable identification

Each individual label and label holder
3 is easily detached from the stem for
installation onto cable. The printed label
in its holder is perfectly protected over MG-TPMF MG-TPM
time. Easy entry thanks to profiled shape For more efficiency, stems can be
cable tied together using the holes
provided

For fast and easy cable identification

Markers directly mounted on wires and cables

Slide-on cable marker Clip-on cable marker
Wire external diameter Conductor Marker length Marker color MG-TDM MG2-TDMO
section
mm in mm² mm in
Ø 1.6 ... 3.25 Ø 0.06 ... 0.12 0.5 ... 1.5 12 0.472 White MG-TDM-01 49190 –
Yellow MG-TDM-01 40140 –
16 0.630 White MG-TDM-01 49191 –
Yellow MG-TDM-01 40141 –
Ø 2 ... 2.9 Ø 0.07 ... 0.11 0.5 ... 1.5 12 0.472 White – MG2-TDMO-01 40390
Yellow – MG2-TDMO-01 40340
16 0.630 White – MG2-TDMO-01 40391
Yellow – MG2-TDMO-01 40341
Ø 2.9 ... 3.5 Ø 0.11 ... 0.14 1.5 ... 2.5 12 0.472 White – MG2-TDMO-02 40490
Yellow – MG2-TDMO-02 40440
16 0.630 White – MG2-TDMO-02 40491
Yellow – MG2-TDMO-02 40441
Ø 2 ... 4.4 Ø 0.07 ... 0.17 1 ... 6 12 0.472 White MG-TDM-02 40290 –
Yellow MG-TDM-02 40240 –
16 0.630 White MG-TDM-02 40291 –
Yellow MG-TDM-02 40241 –
Ø 4 ... 4.6 Ø 0.16 ... 0.18 4 ... 6 12 0.472 White – MG2-TDMO-03 40590
Yellow – MG2-TDMO-03 40540 1SNC160214S0201
16 0.630 White – MG2-TDMO-03 40591
Yellow – MG2-TDMO-03 40541
