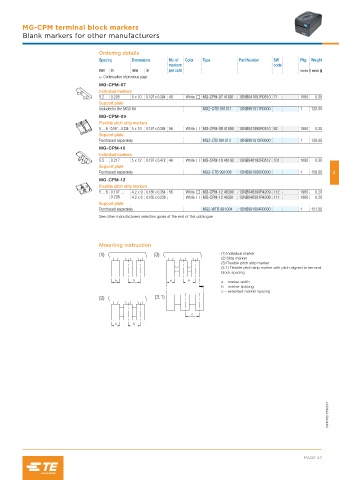

MG-CPM terminal block markers
Blank markers for other manufacturers

Ordering details
Spacing Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in mm in per card marker (1 marker) g
← Continuation of previous page
MG-CPM-07
Individual markers
5.2 0.205 5 x 10 0.197 x 0.394 48 White MG-CPM-07 41691 1SNB041691R0510 71 1680 0.30
Support plate
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
MG-CPM-09
Flexible pitch strip markers
5 ... 6 0.197 ... 0.236 5 x 10 0.197 x 0.394 56 White MG-CPM-09 41890 1SNB041890R0510 92 1960 0.20
Support plate
Purchased separately MG2-LTB 991013 1SNB991013R0000 1 128.00
MG-CPM-10
Individual markers
5.5 0.217 5 x 12 0.197 x 0.472 48 White MG-CPM-10 46192 1SNB046192R0512 101 1680 0.30
Support plate
Purchased separately MG2-CTB 991006 1SNB991006R0000 1 156.00 3
MG-CPM-12
Flexible pitch strip markers
5 ... 6 0.197 ... 4.2 x 9 0.165 x 0.354 56 White MG-CPM-12 46390 1SNB046390R4209 112 1960 0.20
0.236 4.2 x 6 0.165 x 0.236 White MG-CPM-12 46391 1SNB046391R4206 111 1960 0.20
Support plate
Purchased separately MG2-WTB 991004 1SNB991004R0000 1 151.00
See other manufacturers selection guide at the end of this catalogue

Mounting instruction
(1) (3) (1) Individual marker
(2) Strip marker
(3) Flexible pitch strip marker
(3.1) Flexible pitch strip marker with pitch aligned to terminal
block spacing

a b a b
a = marker width
b = marker spacing
c = extended marker spacing
(2) (3.1)

c
a b

1SNC160167S0201
