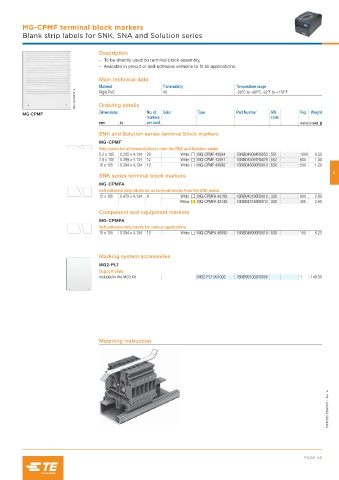

Page 1087 - Entrelec Terminal Blocks Master Catalog

MG-CPMF terminal block markers
Blank strip labels for SNK, SNA and Solution series

Description
– To be directly used on terminal block assembly,
– Available in precut or self-adhesive versions to fit all applications.

Main technical data
Material Flammability Temperature range
1SNC160132F0014 Ordering details
-30°C to +80°C -22°F to +176°F
Rigid PVC
V0
Dimensions Nb. of Color Type Part Number SW Pkg Weight
MG-CPMF
markers code
mm in per card marker (1 marker) g
SNA and Solution series terminal block markers
MG-CPMF
Strip labels for all terminal blocks from the SNA and Solution series
5.2 x 105 0.205 x 4.134 20 White MG-CPMF 43094 1SNB043094R0052 551 1000 0.30
7.6 x 105 0.299 x 4.134 12 White MG-CPMF 43091 1SNB043091R0076 552 600 1.00
10 x 105 0.394 x 4.134 10 White MG-CPMF 43090 1SNB043090R0010 530 500 1.20
3
SNK series terminal block markers
MG-CPMFA
Self-adhesive strip labels for all terminal blocks from the SNK series
12 x 105 0.472 x 4.134 8 White MG-CPMFA 43196 1SNB043196R0012 330 400 2.60
Yellow MG-CPMFA 43146 1SNB043146R0012 330 400 2.60
Component and equipment markers
MG-CPMFA
Self-adhesive strip labels for various applications
10 x 105 0.394 x 4.134 10 White MG-CPMFA 46990 1SNB046990R0010 530 100 6.23

Marking system accessories
MG2-PLT
Support plate
Included in the MG3 Kit MG2-PLT 991002 1SNB991002R0000 1 148.50

Mounting instruction

1SNC160166S0201 - Rev. A
