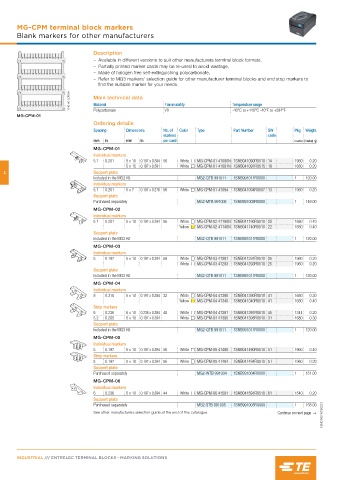

Page 1088 - Entrelec Terminal Blocks Master Catalog

MG-CPM terminal block markers
Blank markers for other manufacturers
1SNC160120F0014 Main technical data Flammability
MG-CPM-01
3 Support plate
INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
Description
– Available in different versions to suit other manufacturers terminal block formats,
– Partially printed marker cards may be re-used to avoid wastage,
– Made of halogen free self-extinguishing polycarbonate,
– Refer to MG3 markers' selection guide for other manufacturer terminal blocks and end stop markers to
find the suitable marker for your needs.
Temperature range
Material
Polycarbonate V0 -40°C to +140°C -40°F to +284°F
Ordering details
Spacing Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in mm in per card marker (1 marker) g
MG-CPM-01
Individual markers
5.1 0.201 5 x 10 0.197 x 0.394 56 White MG-CPM-01 41090N 1SNB041090R0510 14 1960 0.20
5 x 15 0.197 x 0.591 White MG-CPM-01 41091N 1SNB041091R0515 16 1680 0.20
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
Individual markers
5.1 0.201 5 x 7 0.197 x 0.276 56 White MG-CPM-01 41094 1SNB041094R0507 13 1960 0.20
Support plate
Purchased separately MG2-MTB 991008 1SNB991008R0000 1 149.00
MG-CPM-02
Individual markers
5.1 0.201 5 x 10 0.197 x 0.394 56 White MG-CPM-02 41190N 1SNB041190R0510 22 1680 0.40
Yellow MG-CPM-02 41140N 1SNB041140R0510 22 1680 0.40
Support plate
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
MG-CPM-03
Individual markers
5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-03 41291 1SNB041291R0510 25 1960 0.20
White MG-CPM-03 41293 1SNB041293R0510 25 1960 0.20
Support plate
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
MG-CPM-04
Individual markers
8 0.315 5 x 10 0.197 x 0.394 32 White MG-CPM-04 41390 1SNB041390R0510 41 1680 0.30
Yellow MG-CPM-04 41340 1SNB041340R0510 41 1680 0.40
Strip markers
6 0.236 6 x 10 0.236 x 0.394 48 White MG-CPM-04 41391 1SNB041391R0610 45 1344 0.20
5.2 0.205 5 x 10 0.197 x 0.394 White MG-CPM-04 41395 1SNB041395R0510 31 1680 0.30
Support plate
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
MG-CPM-05
Individual markers
5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-05 41490 1SNB041490R0510 51 1960 0.40
Strip markers
5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-05 41494 1SNB041494R0510 51 1960 0.20
Support plate
Purchased separately MG2-WTB 991004 1SNB991004R0000 1 151.00
MG-CPM-06
Individual markers
6 0.236 5 x 10 0.197 x 0.394 44 White MG-CPM-06 41591 1SNB041591R0510 61 1540 0.20
Support plate
1SNC160167S0201
Purchased separately MG2-STB 991005 1SNB991005R0000 1 158.00
See other manufacturers selection guide at the end of this catalogue Continue on next page →
