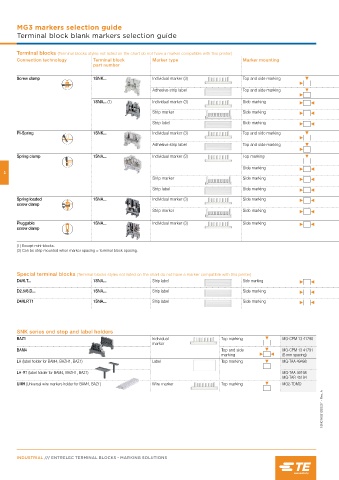

MG3 markers selection guide
Terminal block blank markers selection guide

Terminal blocks (Terminal blocks styles not listed on the chart do not have a marker compatible with this printer)
Connection technology Terminal block Marker type Marker mounting
part number

Screw clamp 1SNK... Individual marker (3) Top and side marking
Adhesive strip label Top and side marking

1SNA... (1) Individual marker (3) Side marking
Strip marker Side marking
Strip label Side marking

PI-Spring 1SNK... Individual marker (3) Top and side marking
Adhesive strip label Top and side marking

Spring clamp 1SNA... Individual marker (3) Top marking
Side marking
3
Strip marker Side marking
Strip label Side marking
Spring loaded 1SNA... Individual marker (3) Side marking
screw clamp
Strip marker Side marking
Pluggable 1SNA... Individual marker (3) Side marking
screw clamp

(1) Except mini-blocks.
(3) Can be strip mounted when marker spacing = terminal block spacing.

Special terminal blocks (Terminal blocks styles not listed on the chart do not have a marker compatible with this printer)
D4/6.T... 1SNA... Strip label Side marking
D2.5/6.D... 1SNA... Strip label Side marking

D4/6.P.T1 1SNA... Strip label Side marking

SNK series end stop and label holders
BAZ1 Individual Top marking MG-CPM 13 41790
marker
BAM4 Top and side MG-CPM 13 41791
marking (6 mm spacing)
LH (label holder for BAM4, BAZH1, BAZ1) Label Top marking MG-TAA 49498
LH-R1 (label holder for BAM4, BAZH1, BAZ1) MG-TAA 49198
MG-TAR 45194
UMH (Universal wire markers holder for BAM4, BAZ1) Wire marker Top marking MG2-TDMO
1SNC160213S0201 - Rev. A

INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
