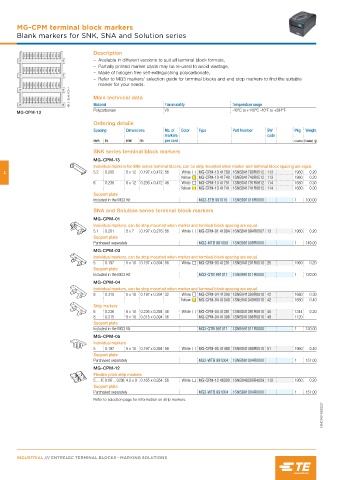

Page 1086 - Entrelec Terminal Blocks Master Catalog

MG-CPM terminal block markers
Blank markers for SNK, SNA and Solution series

Description
– Available in different versions to suit all terminal block formats,
– Partially printed marker cards may be re-used to avoid wastage,
– Made of halogen free self-extinguishing polycarbonate,
– Refer to MG3 markers' selection guide for terminal blocks and end stop markers to find the suitable
marker for your needs.
1SNC160131F0014 Main technical data

Material
V0
-40°C to +140°C -40°F to +284°F
Polycarbonate Flammability Temperature range
MG-CPM-13
Ordering details
Spacing Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in mm in per card marker (1 marker) g
SNK series terminal block markers
MG-CPM-13
Individual markers for SNK series terminal blocks, can be strip mounted when marker and terminal block spacing are equal.
3 5.2 0.205 5 x 12 0.197 x 0.472 56 White MG-CPM-13 41790 1SNB041790R0512 113 1960 0.20
Yellow MG-CPM-13 41740 1SNB041740R0512 113 1960 0.20
6 0.236 6 x 12 0.236 x 0.472 48 White MG-CPM-13 41791 1SNB041791R0612 114 1680 0.30
Yellow MG-CPM-13 41741 1SNB041741R0612 114 1680 0.30
Support plate
Included in the MG3 Kit MG2-ETB 991016 1SNB991016R0000 1 100.00
SNA and Solution series terminal block markers
MG-CPM-01
Individual markers, can be strip mounted when marker and terminal block spacing are equal.
5.1 0.201 5 x 7 0.197 x 0.276 56 White MG-CPM-01 41094 1SNB041094R0507 13 1960 0.20
Support plate
Purchased separately MG2-MTB 991008 1SNB991008R0000 1 149.00
MG-CPM-03
Individual markers, can be strip mounted when marker and terminal block spacing are equal.
5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-03 41291 1SNB041291R0510 25 1960 0.20
Support plate
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
MG-CPM-04
Individual markers, can be strip mounted when marker and terminal block spacing are equal.
8 0.315 5 x 10 0.197 x 0.394 32 White MG-CPM-04 41390 1SNB041390R0510 42 1680 0.30
Yellow MG-CPM-04 41340 1SNB041340R0510 42 1680 0.40
Strip markers
6 0.236 6 x 10 0.236 x 0.394 48 White MG-CPM-04 41391 1SNB041391R0610 45 1344 0.20
8 0.315 8 x 10 0.315 x 0.394 36 MG-CPM-04 41396 1SNB041396R0810 48 1120
Support plate
Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000 1 120.00
MG-CPM-05
Individual markers
5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-05 41490 1SNB041490R0510 51 1960 0.40
Support plate
Purchased separately MG2-WTB 991004 1SNB991004R0000 1 151.00
MG-CPM-12
Flexible pitch strip markers
5 ... 6 0.197 ... 0.236 4.2 x 9 0.165 x 0.354 56 White MG-CPM-12 46390 1SNB046390R4209 112 1960 0.20
Support plate
Purchased separately MG2-WTB 991004 1SNB991004R0000 1 151.00
Refer to selection page for information on strip markers.
