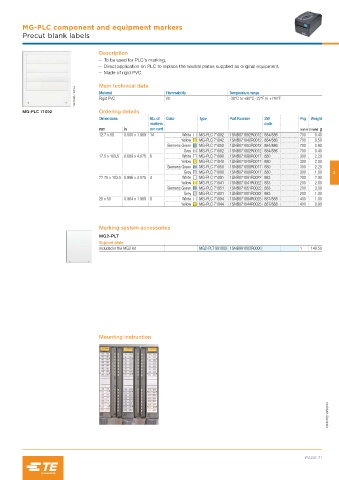

Page 1113 - Entrelec Terminal Blocks Master Catalog

MG-PLC component and equipment markers
Precut blank labels

Description
– To be used for PLC's marking,
– Direct application on PLC to replace the neutral plates supplied as original equipment,
– Made of rigid PVC.
Main technical data
1SNC160141F0014 Material Flammability Temperature range
V0
Rigid PVC
-30°C to +80°C -22°F to +176°F
MG-PLC 71092 Ordering details
Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in per card marker (1 marker) g
12.7 x 50 0.500 x 1.969 14 White MG-PLC 71092 1SNB071092R0012 884/886 700 0.40
Yellow MG-PLC 71042 1SNB071042R0012 884/886 700 0.50
Siemens Green MG-PLC 71052 1SNB071052R0012 884/886 700 0.80
Grey MG-PLC 71002 1SNB071002R0012 884/886 700 0.40
17.5 x 103.5 0.689 x 4.075 6 White MG-PLC 71090 1SNB071090R0017 880 300 2.20
Yellow MG-PLC 71040 1SNB071040R0017 880 300 2.00
Siemens Green MG-PLC 71050 1SNB071050R0017 880 300 2.20
Grey MG-PLC 71000 1SNB071000R0017 880 300 1.00 3
22.75 x 103.5 0.896 x 4.075 4 White MG-PLC 71091 1SNB071091R0022 883 200 2.90
Yellow MG-PLC 71041 1SNB071041R0022 883 200 2.80
Siemens Green MG-PLC 71051 1SNB071051R0022 883 200 3.00
Grey MG-PLC 71001 1SNB071001R0022 883 200 1.00
25 x 50 0.984 x 1.969 8 White MG-PLC 71094 1SNB071094R0025 887/888 400 1.00
Yellow MG-PLC 71044 1SNB071044R0025 887/888 400 0.90

Marking system accessories
MG2-PLT
Support plate
Included in the MG3 Kit MG2-PLT 991002 1SNB991002R0000 1 148.50

Mounting instruction

1SNC160182S0201

PAGE 71
