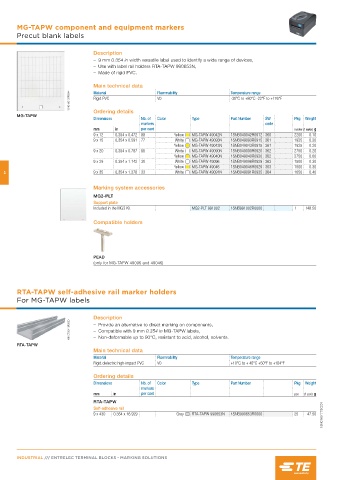

Page 1110 - Entrelec Terminal Blocks Master Catalog

MG-TAPW component and equipment markers
Precut blank labels

Description
– 9 mm 0.354 in width versatile label used to identify a wide range of devices,
– Use with label rail holders RTA-TAPW 990653N,
– Made of rigid PVC.
Main technical data Flammability Temperature range
1SNC160137F0014 Rigid PVC V0 -30°C to +80°C -22°F to +176°F
Material

Ordering details
MG-TAPW
Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in per card marker (1 marker) g
9 x 12 0.354 x 0.472 88 Yellow MG-TAPW 49042N 1SNB049042R0912 360 2200 0.10
9 x 15 0.354 x 0.591 77 White MG-TAPW 49093N 1SNB049093R0915 361 1925 0.20
Yellow MG-TAPW 49043N 1SNB049043R0915 361 1925 0.20
9 x 20 0.354 x 0.787 55 White MG-TAPW 49090N 1SNB049090R0920 362 2750 0.20
Yellow MG-TAPW 49040N 1SNB049040R0920 362 2750 0.60
9 x 29 0.354 x 1.142 30 White MG-TAPW 49096 1SNB049096R0929 363 1500 0.30
Yellow MG-TAPW 49046 1SNB049046R0929 363 1500 0.30
3 9 x 35 0.354 x 1.378 33 White MG-TAPW 49091N 1SNB049091R0935 364 1650 0.40

Marking system accessories
MG2-PLT
Support plate
Included in the MG3 Kit MG2-PLT 991002 1SNB991002R0000 1 148.50

Compatible holders

PEAD
(only for MG-TAPW 49096 and 49046)

RTA-TAPW self-adhesive rail marker holders
For MG-TAPW labels

Description
1SNC700116F0000 – Provide an alternative to direct marking on components,
– Compatible with 9 mm 0.354 in MG-TAPW labels,
– Non-deformable up to 90°C, resistant to acid, alcohol, solvents.
RTA-TAPW
Main technical data
Material Flammability Temperature range
Rigid dielectric high-impact PVC V0 +10°C to + 40°C +50°F to +104°F

Ordering details
Dimensions Nb. of Color Type Part Number Pkg Weight
markers
mm in per card pce (1 pce) g
RTA-TAPW
1SNC160177S0201
Self-adhesive rail
9 x 430 0.354 x 16.929 Grey RTA-TAPW 990653N 1SNB990653R0000 25 47.50

INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
