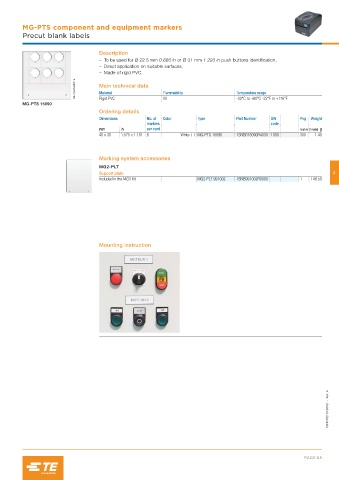

Page 1107 - Entrelec Terminal Blocks Master Catalog
P. 1107

MG-PTS component and equipment markers
         Precut blank labels


                                    Description
                                       – To be used for Ø 22.5 mm 0.886 in or Ø 31 mm 1.220 in push buttons identification,
                                       – Direct application on suitable surfaces,
                                       – Made of rigid PVC.
                           1SNC160136F0014  Main technical data  Flammability       Temperature range

                                    Material
         MG-PTS 15090               Rigid PVC             V0                        -30°C to +80°C -22°F to +176°F
                                    Ordering details
                                    Dimensions       Nb. of    Color  Type          Part Number  SW       Pkg  Weight
                                                     markers                                    code
                                    mm      in       per card                                             marker (1 marker) g
                                    40 x 30  1.575 x 1.181 6    White  MG-PTS 15090  1SNB015090R4030 1000  300  1.40



                                    Marking system accessories
                                    MG2-PLT
                                    Support plate                                                                     3
                                    Included in the MG3 Kit           MG2-PLT 991002  1SNB991002R0000     1   148.50












                                    Mounting instruction































                                                                                                                    1SNC160184S0201 - Rev. A
