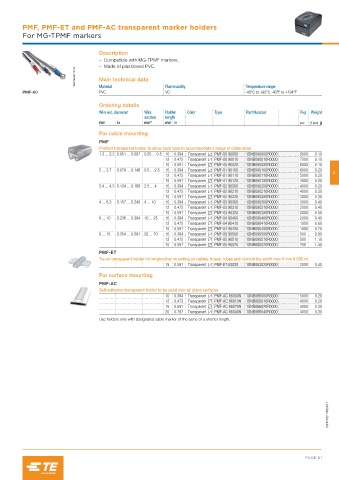

Page 1103 - Entrelec Terminal Blocks Master Catalog

PMF, PMF-ET and PMF-AC transparent marker holders
For MG-TPMF markers

Description
– Compatible with MG-TPMF markers,
– Made of plasticised PVC.
1SNC160251F0014 Main technical data

-40°C to +90°C -40°F to +194°F
PMF-00 Material Flammability Temperature range
PVC
V0
Ordering details
Wire ext. diameter Wire Holder Color Type Part Number Pkg Weight
section length
mm in mm² mm in pce (1 pce) g
For cable mounting
PMF
Profiled transparent holder to allow each type to accommodate a range of cable sizes
1.3 ... 2.2 0.051 ... 0.087 0.25 ... 0.5 10 0.394 Transparent PMF-00 90000 1SNB090000R0000 8000 0.10
12 0.472 Transparent PMF-00 90010 1SNB090010R0000 7000 0.10
15 0.591 Transparent PMF-00 90020 1SNB090020R0000 6000 0.10
2 ... 3.7 0.079 ... 0.146 0.5 ... 2.5 10 0.394 Transparent PMF-01 90100 1SNB090100R0000 6000 0.20 3
12 0.472 Transparent PMF-01 90110 1SNB090110R0000 5000 0.20
15 0.591 Transparent PMF-01 90120 1SNB090120R0000 4000 0.20
3.4 ... 4.3 0.134 ... 0.169 2.5 ... 4 10 0.394 Transparent PMF-02 90200 1SNB090200R0000 4000 0.20
12 0.472 Transparent PMF-02 90210 1SNB090210R0000 4000 0.30
15 0.591 Transparent PMF-02 90220 1SNB090220R0000 3000 0.30
4 ... 6.3 0.157 ... 0.248 4 ... 10 10 0.394 Transparent PMF-03 90300 1SNB090300R0000 3000 0.40
12 0.472 Transparent PMF-03 90310 1SNB090310R0000 2000 0.40
15 0.591 Transparent PMF-03 90320 1SNB090320R0000 2000 0.50
6 ... 10 0.236 ... 0.394 10 ... 25 10 0.394 Transparent PMF-04 90400 1SNB090400R0000 2000 0.40
12 0.472 Transparent PMF-04 90410 1SNB090410R0000 1000 0.60
15 0.591 Transparent PMF-04 90420 1SNB090420R0000 1000 0.70
9 ... 15 0.354 ... 0.591 25 ... 70 10 0.394 Transparent PMF-05 90500 1SNB090500R0000 500 0.90
12 0.472 Transparent PMF-05 90510 1SNB090510R0000 500 1.10
15 0.591 Transparent PMF-05 90520 1SNB090520R0000 250 1.40
PMF-ET
Tie-on transparent holder for longitudinal mounting on cables, hoses, tubes and conduit (tie width max 6 mm 0.236 in)
15 0.591 Transparent PMF-ET 63020 1SNB063020R0000 2000 0.40
For surface mounting
PMF-AC
Self-adhesive transparent holder to be used over all plane surfaces
10 0.394 Transparent PMF-AC 66000N 1SNB066000R0000 5000 0.20
12 0.472 Transparent PMF-AC 66010N 1SNB066010R0000 4000 0.20
15 0.591 Transparent PMF-AC 66020N 1SNB066020R0000 4000 0.30
20 0.787 Transparent PMF-AC 66040N 1SNB066040R0000 4000 0.30
Use holders only with designated cable marker of the same or a shorter length.
