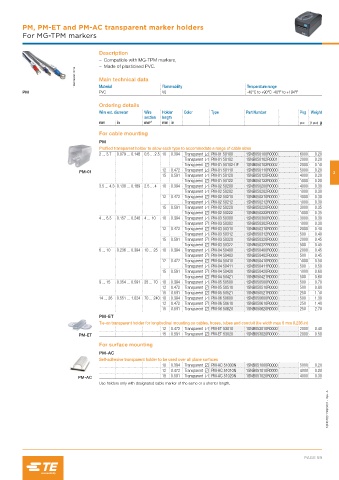

Page 1101 - Entrelec Terminal Blocks Master Catalog

PM, PM-ET and PM-AC transparent marker holders
For MG-TPM markers

Description
– Compatible with MG-TPM markers,
– Made of plasticised PVC.
1SNC160251F0014 Main technical data

-40°C to +90°C -40°F to +194°F
V0
PVC
PM Material Flammability Temperature range
Ordering details
Wire ext. diameter Wire Holder Color Type Part Number Pkg Weight
section length
mm in mm² mm in pce (1 pce) g
For cable mounting
PM
Profiled transparent holder to allow each type to accommodate a range of cable sizes
2 ... 3.7 0.079 ... 0.146 0.5 ... 2.5 10 0.394 Transparent PM-01 50100 1SNB050100R0000 6000 0.20
Transparent PM-01 50102 1SNB050102R0001 2000 0.20
Transparent PM-01 50102-HF 1SNB050102R0002 2000 0.10
12 0.472 Transparent PM-01 50110 1SNB050110R0000 5000 0.20
PM-01 3
15 0.591 Transparent PM-01 50120 1SNB050120R0000 4000 0.20
Transparent PM-01 50122 1SNB050122R0000 1000 0.20
3.5 ... 4.3 0.138 ... 0.169 2.5 ... 4 10 0.394 Transparent PM-02 50200 1SNB050200R0000 4000 0.30
Transparent PM-02 50202 1SNB050202R0000 1000 0.30
12 0.472 Transparent PM-02 50210 1SNB050210R0000 4000 0.30
Transparent PM-02 50212 1SNB050212R0000 1000 0.30
15 0.591 Transparent PM-02 50220 1SNB050220R0000 3000 0.35
Transparent PM-02 50222 1SNB050222R0000 1000 0.35
4 ... 6.3 0.157 ... 0.248 4 ... 10 10 0.394 Transparent PM-03 50300 1SNB050300R0000 3000 0.30
Transparent PM-03 50302 1SNB050302R0000 1000 0.30
12 0.472 Transparent PM-03 50310 1SNB050310R0000 2000 0.40
Transparent PM-03 50312 1SNB050312R0000 500 0.40
15 0.591 Transparent PM-03 50320 1SNB050320R0000 2000 0.45
Transparent PM-03 50322 1SNB050322R0000 500 0.45
6 ... 10 0.236 ... 0.394 10 ... 25 10 0.394 Transparent PM-04 50400 1SNB050400R0000 2000 0.45
Transparent PM-04 50402 1SNB050402R0000 500 0.45
12 0.472 Transparent PM-04 50410 1SNB050410R0000 1000 0.50
Transparent PM-04 50411 1SNB050411R0000 500 0.50
15 0.591 Transparent PM-04 50420 1SNB050420R0000 1000 0.60
Transparent PM-04 50421 1SNB050421R0000 500 0.60
9 ... 15 0.354 ... 0.591 25 ... 70 10 0.394 Transparent PM-05 50500 1SNB050500R0000 500 0.70
12 0.472 Transparent PM-05 50510 1SNB050510R0000 500 0.80
15 0.591 Transparent PM-05 50521 1SNB050521R0000 250 1.10
14 ... 26 0.551 ... 1.024 70 ... 240 10 0.394 Transparent PM-06 50600 1SNB050600R0000 500 1.30
12 0.472 Transparent PM-06 50610 1SNB050610R0000 250 1.40
15 0.591 Transparent PM-06 50620 1SNB050620R0000 250 2.70
PM-ET
Tie-on transparent holder for longitudinal mounting on cables, hoses, tubes and conduit (tie width max 6 mm 0.236 in)
12 0.472 Transparent PM-ET 53010 1SNB053010R0000 2000 0.40
PM-ET 15 0.591 Transparent PM-ET 53020 1SNB053020R0000 2000 0.50
For surface mounting
PM-AC
Self-adhesive transparent holder to be used over all plane surfaces
10 0.394 Transparent PM-AC 51000N 1SNB051000R0000 5000 0.20
12 0.472 Transparent PM-AC 51010N 1SNB051010R0000 4000 0.20
15 0.591 Transparent PM-AC 51020N 1SNB051020R0000 4000 0.30
PM-AC
Use holders only with designated cable marker of the same or a shorter length.
