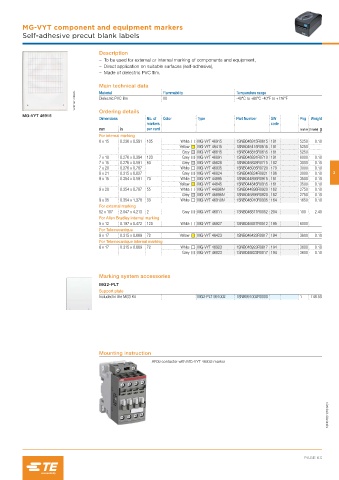

Page 1105 - Entrelec Terminal Blocks Master Catalog

MG-VYT component and equipment markers
Self-adhesive precut blank labels

Description
– To be used for external or internal marking of components and equipment,
– Direct application on suitable surfaces (self-adhesive),
– Made of dielectric PVC film.
Main technical data Flammability Temperature range
1SNC160140F0014 Dielectric PVC film V0 -40°C to +80°C -40°F to +176°F
Material

Ordering details
MG-VYT 46915
Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in per card marker (1 marker) g
For internal marking
6 x 15 0.236 x 0.591 105 White MG-VYT 46915 1SNB046915R0615 181 5250 0.10
Yellow MG-VYT 46415 1SNB046415R0615 181 5250
Grey MG-VYT 46815 1SNB046815R0615 181 5250
7 x 10 0.276 x 0.394 120 Grey MG-VYT 46891 1SNB046891R0710 191 6000 0.10
7 x 15 0.276 x 0.591 60 Grey MG-VYT 46828 1SNB046828R0715 182 3000 0.10
7 x 20 0.276 x 0.787 White MG-VYT 46935 1SNB046935R0720 179 3000 0.10
8 x 21 0.315 x 0.827 Grey MG-VYT 46824 1SNB046824R0821 196 3000 0.10 3
9 x 15 0.354 x 0.591 70 White MG-VYT 44895 1SNB044895R0915 161 3500 0.10
Yellow MG-VYT 44845 1SNB044845R0915 161 3500 0.10
9 x 20 0.354 x 0.787 55 White MG-VYT 44896N 1SNB044896R0920 162 2750 0.10
Grey MG-VYT 46896N 1SNB046896R0920 162 2750 0.10
9 x 35 0.354 x 1.378 33 White MG-VYT 46910N 1SNB046910R0935 164 1650 0.10
For external marking
52 x 107 2.047 x 4.213 2 Grey MG-VYT 46811 1SNB046811R0052 204 100 2.40
For Allen Bradley internal marking
5 x 12 0.197 x 0.472 120 White MG-VYT 46927 1SNB046927R0512 195 6000
For Telemecanique
8 x 17 0.315 x 0.669 72 Yellow MG-VYT 46423 1SNB046423R0817 194 3600 0.10
For Telemecanique internal marking
8 x 17 0.315 x 0.669 72 White MG-VYT 46923 1SNB046923R0817 194 3600 0.10
Grey MG-VYT 46823 1SNB046823R0817 194 3600 0.10

Marking system accessories
MG2-PLT
Support plate
Included in the MG3 Kit MG2-PLT 991002 1SNB991002R0000 1 148.50

Mounting instruction
AF09 contactor with MG-VYT 46935 marker

1SNC160181S0201
