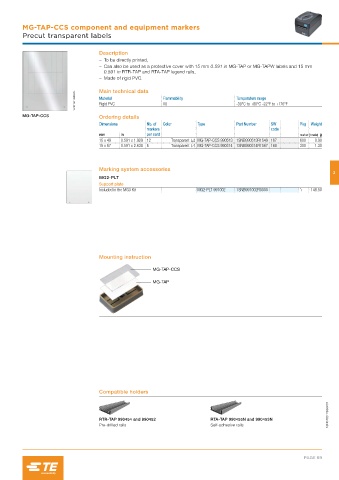

Page 1111 - Entrelec Terminal Blocks Master Catalog

MG-TAP-CCS component and equipment markers
Precut transparent labels

Description
– To be directly printed,
– Can also be used as a protective cover with 15 mm 0.591 in MG-TAP or MG-TAPW labels and 15 mm
0.591 in RTR-TAP and RTA-TAP legend rails,
– Made of rigid PVC.

1SNC160135F0014 Main technical data Flammability Temperature range
Material
-30°C to +80°C -22°F to +176°F
Rigid PVC
V0
MG-TAP-CCS Ordering details
Dimensions Nb. of Color Type Part Number SW Pkg Weight
markers code
mm in per card marker (1 marker) g
15 x 49 0.591 x 1.929 12 Transparent MG-TAP-CCS 990513 1SNB990513R1549 167 600 0.90
15 x 67 0.591 x 2.638 6 Transparent MG-TAP-CCS 990514 1SNB990514R1567 168 300 1.30

Marking system accessories
3
MG2-PLT
Support plate
Included in the MG3 Kit MG2-PLT 991002 1SNB991002R0000 1 148.50

Mounting instruction

MG-TAP-CCS
MG-TAP

Compatible holders
1SNC160178S0201

RTR-TAP 990454 and 990452 RTA-TAP 990455N and 990453N
Pre-drilled rails Self-adhesive rails

PAGE 69
