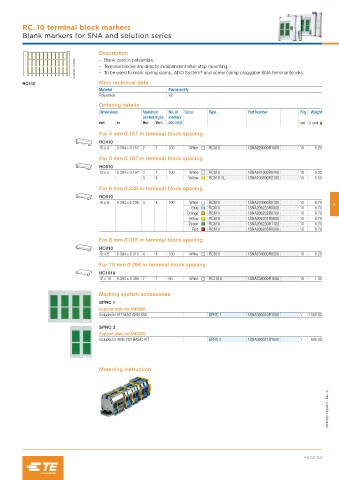

Page 1125 - Entrelec Terminal Blocks Master Catalog

RC..10 terminal block markers
Blank markers for SNA and solution series

Description
– Blank card in polyamide,
1SNC700141F0000 – Terminal blocks are directly independent after strip mounting,
– To be used to mark spring clamp, ADO System and screw clamp pluggable SNA terminal blocks.
®
RC510 Main technical data
Material Flammability
Polyamide V2

Ordering details
Dimensions Maximum Nb. of Color Type Part Number Pkg Weight
printed digits markers
mm in Hor. Vert. per card card (1 card) g

For 4 mm 0.157 in terminal block spacing
RC410
10 x 4 0.394 x 0.157 2 7 100 White RC410 1SNA229000R1500 10 5.20
For 5 mm 0.197 in terminal block spacing
RC510
10 x 5 0.394 x 0.197 3 7 100 White RC510 1SNA231000R0700 10 5.20
4 4 Yellow RC510-YL 1SNA103890R2100 10 5.50
For 6 mm 0.236 in terminal block spacing
RC610
10 x 6 0.394 x 0.236 4 4 100 White RC610 1SNA233000R0100 10 6.70 4
Blue RC610 1SNA206233R0000 10 6.70
Orange RC610 1SNA206232R0700 10 6.70
Yellow RC610 1SNA206231R0600 10 6.70
Green RC610 1SNA206230R1100 10 6.70
Red RC610 1SNA206235R0200 10 6.70
For 8 mm 0.315 in terminal block spacing
RC810
10 x 8 0.394 x 0.315 4 4 100 White RC810 1SNA234000R0200 10 8.20

For 10 mm 0.394 in terminal block spacing
RC1010
10 x 10 0.394 x 0.394 7 7 80 White RC1010 1SNA238000R1600 10 1.30

Marking system accessories
SPRC 1
Support plate for AMS600
Included in KIT MAO AMS 600 SPRC 1 1SNA360010R1500 1 1500.00
SPRC 2
Support plate for AMS250
Included in AMS 250 BASIC KIT SPRC 2 1SNA360011R1500 1 600.00

Mounting instruction

1SNC160113S0201 - Rev. A

PAGE 83
