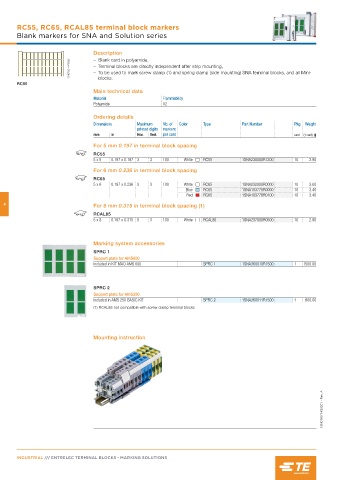

Page 1126 - Entrelec Terminal Blocks Master Catalog

RC55, RC65, RCAL85 terminal block markers
Blank markers for SNA and Solution series

Description
– Blank card in polyamide,
1SNC700141F0000 – Terminal blocks are directly independent after strip mounting,
– To be used to mark screw clamp (1) and spring clamp (side mounting) SNA terminal blocks, and all Mini-
RC55 blocks.
Main technical data
Material Flammability
Polyamide V2

Ordering details
Dimensions Maximum Nb. of Color Type Part Number Pkg Weight
printed digits markers
mm in Hor. Vert. per card card (1 card) g

For 5 mm 0.197 in terminal block spacing
RC55
5 x 5 0.197 x 0.197 3 3 100 White RC55 1SNA230000R1200 10 2.90
For 6 mm 0.236 in terminal block spacing
RC65
5 x 6 0.197 x 0.236 3 3 100 White RC65 1SNA232000R0000 10 3.60
Blue RC65 1SNA103775R0000 10 3.40
Red RC65 1SNA103776R0100 10 3.40
4 For 8 mm 0.315 in terminal block spacing (1)

RCAL85
5 x 8 0.197 x 0.315 5 3 100 White RCAL85 1SNA237000R0500 10 2.90

Marking system accessories
SPRC 1
Support plate for AMS600
Included in KIT MAO AMS 600 SPRC 1 1SNA360010R1500 1 1500.00

SPRC 2
Support plate for AMS250
Included in AMS 250 BASIC KIT SPRC 2 1SNA360011R1500 1 600.00
(1) RCAL85 not compatible with screw clamp terminal blocks

Mounting instruction

1SNC160114S0201 - Rev. A
