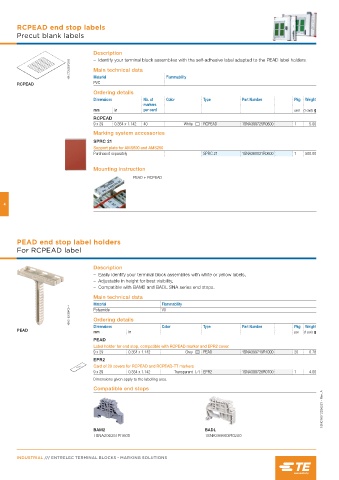

Page 1134 - Entrelec Terminal Blocks Master Catalog

RCPEAD end stop labels
Precut blank labels

Description
– Identify your terminal block assemblies with the self-adhesive label adapted to the PEAD label holders.
1SNC700232F0000 Main technical data
Material
PVC Flammability
RCPEAD
Ordering details
Dimensions Nb. of Color Type Part Number Pkg Weight
markers
mm in per card card (1 card) g
RCPEAD
9 x 29 0.354 x 1.142 40 White RCPEAD 1SNA399725R0600 1 5.00
Marking system accessories
SPRC 21
Support plate for AMS600 and AMS250
Purchased separately SPRC 21 1SNA360031R0600 1 500.00

Mounting instruction
PEAD + RCPEAD

4

PEAD end stop label holders
For RCPEAD label

Description
– Easily identify your terminal block assemblies with white or yellow labels,
– Adjustable in height for best visibility,
– Compatible with BAM2 and BADL SNA series end stops.
Main technical data
Material Flammability
1SNC160058F0014 Polyamide V0

Ordering details
Dimensions Color Type Part Number Pkg Weight
PEAD mm in pce (1 pce) g
PEAD
Label holder for end stop, compatible with RCPEAD marker and EPR2 cover.
9 x 29 0.354 x 1.142 Grey PEAD 1SNA399719R1000 20 0.78
EPR2
Card of 20 covers for RCPEAD and RCPEAD-TT markers
9 x 29 0.354 x 1.142 Transparent EPR2 1SNA399726R0700 1 4.00
Dimensions given apply to the labelling area.
Compatible end stops
1SNC160122S0201 - Rev. A

BAM2 BADL

1SNA206351R1600 1SNA399903R0200

INDUSTRIAL /// ENTRELEC TERMINAL BLOCKS - MARKING SOLUTIONS
