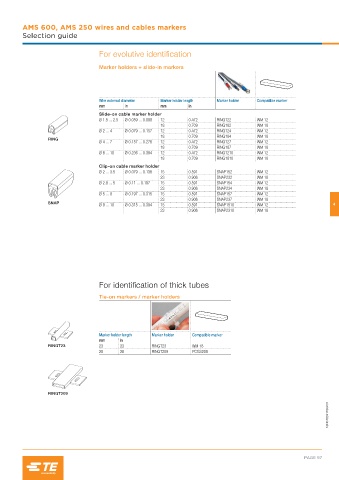

AMS 600, AMS 250 wires and cables markers
Selection guide

For evolutive identification

Marker holders + slide-in markers

Wire external diameter Marker holder length Marker holder Compatible marker
mm in mm in
Slide-on cable marker holder
Ø 1.5 ... 2.5 Ø 0.059 ... 0.098 12 0.472 RING122 WM 12
18 0.709 RING182 WM 18
Ø 2 ... 4 Ø 0.079 ... 0.157 12 0.472 RING124 WM 12
18 0.709 RING184 WM 18
RING
Ø 4 ... 7 Ø 0.157 ... 0.276 12 0.472 RING127 WM 12
18 0.709 RING187 WM 18
Ø 6 ... 10 Ø 0.236 ... 0.394 12 0.472 RING1210 WM 12
18 0.709 RING1810 WM 18
Clip-on cable marker holder
Ø 2 ... 3.5 Ø 0.079 ... 0.138 15 0.591 SNAP152 WM 12
23 0.906 SNAP232 WM 18
Ø 2.8 ... 5 Ø 0.11 ... 0.197 15 0.591 SNAP154 WM 12
23 0.906 SNAP234 WM 18
Ø 5 ... 8 Ø 0.197 ... 0.315 15 0.591 SNAP157 WM 12
23 0.906 SNAP237 WM 18
SNAP
Ø 8 ... 10 Ø 0.315 ... 0.394 15 0.591 SNAP1510 WM 12 4
23 0.906 SNAP2310 WM 18

For identification of thick tubes

Tie-on markers / marker holders

Marker holder length Marker holder Compatible marker
mm in
RINGT23 23 23 RINGT23 WM 18
28 28 RINGT209 PCGS209

RINGT209
1SNC160217S0201

PAGE 97
