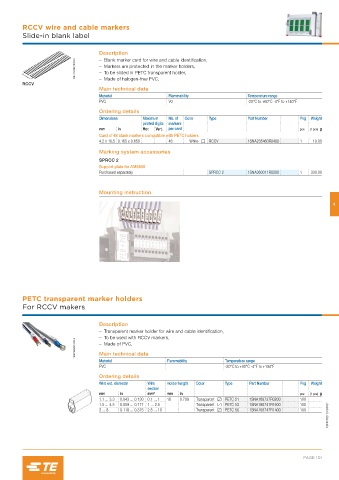

Page 1143 - Entrelec Terminal Blocks Master Catalog

RCCV wire and cable markers
Slide-in blank label

Description
– Blank marker card for wire and cable identification,
1SNC700227F0000 – Markers are protected in the marker holders,
– To be slided in PETC transparent holder,
RCCV – Made of halogen-free PVC.
Main technical data
Material Flammability Temperature range
PVC V0 -20°C to +60°C -4°F to +140°F
Ordering details
Dimensions Maximum Nb. of Color Type Part Number Pkg Weight
printed digits markers
mm in Hor. Vert. per card pce (1 pce) g
Card of 48 blank markers compatible with PETC holders
4.2 x 16.5 0.165 x 0.650 48 White RCCV 1SNA235460R0400 1 10.00
Marking system accessories
SPRCC 2
Support plate for AMS600
Purchased separately SPRCC 2 1SNA360011R0200 1 330.00

Mounting instruction
4

PETC transparent marker holders
For RCCV makers

Description
– Transparent marker holder for wire and cable identification,
– To be used with RCCV markers,
1SNC160251F0014 Main technical data
– Made of PVC.

Material Flammability Temperature range
PVC -20°C to +90°C -4°F to +194°F
Ordering details
Wire ext. diameter Wire Holder length Color Type Part Number Pkg Weight
section
mm in mm² mm in pce (1 pce) g
1.1 ... 3.3 0.043 ... 0.130 0.1 ... 1 18 0.709 Transparent PETC 51 1SNA168737R0200 100
1SNC160134S0201
1.5 ... 4.5 0.059 ... 0.177 1 ... 2.5 Transparent PETC 53 1SNA168741R1600 100
3 ... 8 0.118 ... 0.315 2.5 ... 10 Transparent PETC 56 1SNA168747R1400 100
