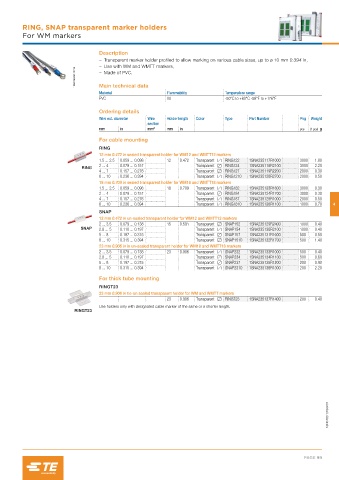

Page 1141 - Entrelec Terminal Blocks Master Catalog

RING, SNAP transparent marker holders
For WM markers

Description
– Transparent marker holder profiled to allow marking on various cable sizes, up to ø 10 mm 0.394 in,
– Use with WM and WMTT markers,
1SNC160251F0014 – Made of PVC.

Main technical data
Material Flammability Temperature range
PVC V0 -50°C to +80°C -58°F to +176°F

Ordering details
Wire ext. diameter Wire Holder length Color Type Part Number Pkg Weight
section
mm in mm² mm in pce (1 pce) g
For cable mounting
RING
12 mm 0.472 in sealed transparent holder for WM12 and WMTT12 markers
1.5 ... 2.5 0.059 ... 0.098 12 0.472 Transparent RING122 1SNA235117R1000 3000 1.80
2 ... 4 0.079 ... 0.157 Transparent RING124 1SNA235118R2100 3000 2.20
RING
4 ... 7 0.157 ... 0.276 Transparent RING127 1SNA235119R2200 2000 0.30
6 ... 10 0.236 ... 0.394 Transparent RING1210 1SNA235120R2700 2000 0.50
18 mm 0.709 in sealed transparent holder for WM18 and WMTT18 markers
1.5 ... 2.5 0.059 ... 0.098 18 0.709 Transparent RING182 1SNA235123R1600 3000 0.30
2 ... 4 0.079 ... 0.157 Transparent RING184 1SNA235124R1700 3000 0.30
4 ... 7 0.157 ... 0.276 Transparent RING187 1SNA235125R1000 2000 0.50
6 ... 10 0.236 ... 0.394 Transparent RING1810 1SNA235126R1100 1000 0.70 4
SNAP
12 mm 0.472 in un-sealed transparent holder for WM12 and WMTT12 markers
2 ... 3.5 0.079 ... 0.138 15 0.591 Transparent SNAP152 1SNA235129R2400 1000 0.40
SNAP 2.8 ... 5 0.110 ... 0.197 Transparent SNAP154 1SNA235130R2100 1000 0.40
5 ... 8 0.197 ... 0.315 Transparent SNAP157 1SNA235131R1600 500 0.50
8 ... 10 0.315 ... 0.394 Transparent SNAP1510 1SNA235132R1700 500 1.40
23 mm 0.906 in in un-sealed transparent holder for WM18 and WMTT18 markers
2 ... 3.5 0.079 ... 0.138 23 0.906 Transparent SNAP232 1SNA235133R1000 500 0.40
2.8 ... 5 0.110 ... 0.197 Transparent SNAP234 1SNA235134R1100 500 0.60
5 ... 8 0.197 ... 0.315 Transparent SNAP237 1SNA235135R1200 200 0.90
8 ... 10 0.315 ... 0.394 Transparent SNAP2310 1SNA235136R1300 200 2.20

For thick tube mounting
RINGT23
23 mm 0.906 in tie-on sealed transparent holder for WM and WMTT markers
23 0.906 Transparent RINGT23 1SNA235137R1400 200 0.40
Use holders only with designated cable marker of the same or a shorter length.
RINGT23

1SNC160137S0201
