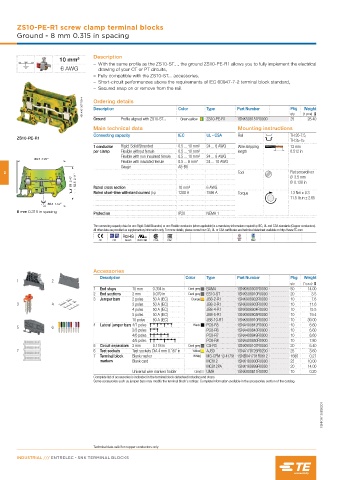

Page 166 - Entrelec Terminal Blocks Master Catalog

ZS10-PE-R1 screw clamp terminal blocks
Ground - 8 mm 0.315 in spacing

Description
10 mm²
– With the same profile as the ZS10-ST..., the ground ZS10-PE-R1 allows you to fully implement the electrical
6 AWG drawing of your CT or PT circuits,
– Fully compatible with the ZS10-ST... accessories,
– Short-circuit performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secured snap on or remove from the rail.
1SNK161067F0014 Ordering details Color Type Part Number Pkg Weight

Description
25
28.40
Ground Profile aligned with ZS10-ST... Green-yellow ZS10-PE-R1 1SNK508151R0000 qty (1 pce) g
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
ZS10-PE-R1
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 10 mm² 24 ... 6 AWG Wire stripping 13 mm
per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.512 in
Flexible with non insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
83.7 3.29"
Flexible with insulated ferrule 0.5 ... 6 mm² 24 ... 10 AWG
Gauge A5-B5
3 Tool Flat screwdriver
61 2.40" 53.5 2.11" Ø 0.138 in
Ø 3.5 mm
Rated cross section 10 mm² 6 AWG
Rated short-time withstand current (1s) 1200 A 1596 A Torque 1.3 Nm ± 0.3
11.5 lb.in ± 2.65
38.7 1.52"
8 mm 0.315 in spacing Protection IP20 NEMA 1

The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2 mm 0.079 in Dark grey ES10-ST 1SNK508910R0000 20 3.5
3 Jumper bars 2 poles 50 A (IEC) Orange JB8-2-R1 1SNK908902R0000 10 7.6
3 4 3 poles 50 A (IEC) JB8-3-R1 1SNK908903R0000 10 11.6
4 poles 50 A (IEC) JB8-4-R1 1SNK908904R0000 10 15.5
5 poles 50 A (IEC) JB8-5-R1 1SNK908905R0000 10 19.4
10 poles 50 A (IEC) JB8-10-R1 1SNK908910R0000 10 39.00
4 Lateral jumper bars 4/7 poles Black PC8-R5 1SNA400842R0000 10 6.60
5 6
2/3 poles PC8-R6 1SNA400843R0000 10 6.60
4/6 poles PC8-R7 1SNA400849R0000 10 6.60
4/8 poles PC8-R8 1SNA400850R0000 10 7.80
5 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
7 6 Test sockets Test sockets DIA 4 mm 0.157 in Yellow AJS9 1SNA179726R0200 25 3.60
7 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161058S0201

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
