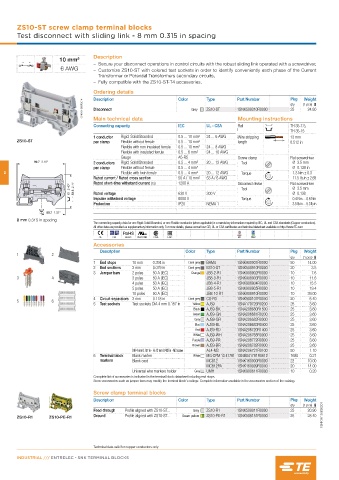

Page 162 - Entrelec Terminal Blocks Master Catalog

ZS10-ST screw clamp terminal blocks
Test disconnect with sliding link - 8 mm 0.315 in spacing

Description
10 mm²
– Secure your disconnect operations in control circuits with the robust sliding link operated with a screwdriver,
6 AWG – Customize ZS10-ST with colored test sockets in order to identify conveniently each phase of the Current
Transformer or Potential Transformers secondary circuits,
– Fully compatible with the ZS10-ST-T4 accessories.
Ordering details Color Type Part Number Pkg Weight
Description
1SNK161065F0014 Disconnect Grey ZS10-ST 1SNK508310R0000 qty (1 pce) g
24.80
25
Main technical data
Connecting capacity IEC UL - CSA Mounting instructions TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 10 mm² 24 ... 6 AWG Wire stripping 13 mm
ZS10-ST per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.512 in
Flexible with non insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 6 mm² 24 ... 10 AWG
Gauge A5-B5 Screw clamp Flat screwdriver
80.7 3.18" Rigid: Solid/Stranded 0.5 ... 4 mm² 20 ... 12 AWG Ø 3.5 mm
2 conductors Tool
per clamp Flexible without ferrule 0.5 ... 4 mm² Ø 0.138 in
3 Flexible with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG Torque 1.3 Nm ± 0.3
11.5 lb.in ± 2.65
Rated current / Rated cross section 50 A / 10 mm² 53 A / 6 AWG Disconnect device Flat screwdriver
1200 A
Rated short-time withstand current (1s)
61 2.40" 53.5 2.11" Rated voltage 630 V 300 V Tool Ø 3.5 mm
Ø 0.138
Impulse withstand voltage 8000 V Torque 0.4 Nm ... 0.6 Nm
Protection IP20 NEMA 1 3.5 lb.in ... 5.3 lb.in
38.7 1.52"
8 mm 0.315 in spacing
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV DNV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2 mm 0.079 in Dark grey ES10-ST 1SNK508910R0000 20 3.5
3 Jumper bars 2 poles 50 A (IEC) Orange JB8-2-R1 1SNK908902R0000 10 7.6
3 4 3 poles 50 A (IEC) JB8-3-R1 1SNK908903R0000 10 11.6
4 poles 50 A (IEC) JB8-4-R1 1SNK908904R0000 10 15.5
5 poles 50 A (IEC) JB8-5-R1 1SNK908905R0000 10 19.4
10 poles 50 A (IEC) JB8-10-R1 1SNK908910R0000 10 39.00
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 6
5 Test sockets Test sockets DIA 4 mm 0.157 in Yellow AJS9 1SNA179726R0200 25 3.60
Black AJS9-BK 1SNA206680R1500 25 3.60
Green AJS9-GN 1SNA206681R0200 25 3.60
Grey AJS9-GR 1SNA206682R0300 25 3.60
Blue AJS9-BL 1SNA206683R0400 25 3.60
Red AJS9-RD 1SNA206720R1400 25 3.60
White AJS9-WH 1SNA206765R0000 25 3.60
Purple AJS9-PR 1SNA206772R0000 25 3.60
Brown AJS9-BR 1SNA206782R0000 25 3.60
DIA 4 mm 0.157 in - H=12 mm 0.492 in - M3 screw AL4-M3 1SNA206721R0100 50 1.10
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Screw clamp terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Feed-through Profile aligned with ZS10-ST... Grey ZS10-R1 1SNK508011R0000 25 20.90
Ground Profile aligned with ZS10-ST... Green-yellow ZS10-PE-R1 1SNK508151R0000 25 28.40 1SNK161056S0201
ZS10-R1 ZS10-PE-R1

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
