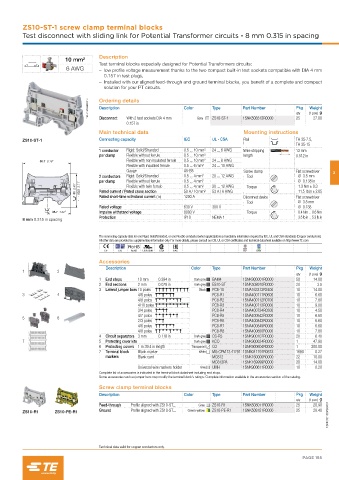

ZS10-ST-1 screw clamp terminal blocks
Test disconnect with sliding link for Potential Transformer circuits - 8 mm 0.315 in spacing

Description
10 mm²
Test terminal blocks especially designed for Potential Transformers circuits:
6 AWG – low profile voltage measurement thanks to the two compact built-in test sockets compatible with DIA 4 mm
0.157 in test plugs,
– Installed with our aligned feed-through and ground terminal blocks, you benefit of a complete and compact
solution for your PT circuits.

1SNK161069F0014 Ordering details Color Type Part Number Pkg (1 pce) g
Weight
Description
qty
With 2 test sockets DIA 4 mm
Disconnect
0.157 in Grey ZS10-ST-1 1SNK508312R0000 25 27.00
Main technical data Mounting instructions
ZS10-ST-1 Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 10 mm² 24 ... 6 AWG Wire stripping 13 mm
per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.512 in
80.7 3.18" Flexible with non insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 6 mm² 24 ... 10 AWG
Gauge A5-B5 Screw clamp Flat screwdriver 3
2 conductors Rigid: Solid/Stranded 0.5 ... 4 mm² 20 ... 12 AWG Tool Ø 3.5 mm
per clamp
Flexible without ferrule
Ø 0.138 in
0.5 ... 4 mm²
61 2.40" 53.5 2.11" Rated current / Rated cross section 0.5 ... 4 mm² 20 ... 12 AWG Torque 1.3 Nm ± 0.3
Flexible with twin ferrule
50 A / 10 mm²
11.5 lb.in ± 2.65
53 A / 6 AWG
Rated short-time withstand current (1s) 1200 A Disconnect device Flat screwdriver
Tool Ø 3.5 mm
Rated voltage 630 V 300 V Ø 0.138
38.7 1.52" Impulse withstand voltage 8000 V Torque 0.4 Nm ... 0.6 Nm
Protection IP10 NEMA 1 3.5 lb.in ... 5.3 lb.in
8 mm 0.315 in spacing
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV DNV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2 mm 0.079 in Dark grey ES10-ST 1SNK508910R0000 20 3.5
3 Lateral jumper bars 10 poles Black PC8-10 1SNA163313R2400 10 14.00
3 4 4/6 poles PC8-R1 1SNA400711R0600 10 6.60
4/8 poles PC8-R2 1SNA400712R0700 10 7.80
4/10 poles PC8-R3 1SNA400713R0000 10 9.00
3/4 poles PC8-R4 1SNA400724R0300 10 4.50
4/7 poles PC8-R5 1SNA400842R0000 10 6.60
5 6
2/3 poles PC8-R6 1SNA400843R0000 10 6.60
4/6 poles PC8-R7 1SNA400849R0000 10 6.60
4/8 poles PC8-R8 1SNA400850R0000 10 7.80
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
7 5 Protecting cover kits Dark grey KCO 1SNK900624R0000 1 47.80
6 Protecting covers 1 m 39.4 in length Transparent CO 1SNK900604R0000 1 300.00
7 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Screw clamp terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNK161062S0201
Feed-through Profile aligned with ZS10-ST... Grey ZS10-R1 1SNK508011R0000 25 20.90
Ground Profile aligned with ZS10-ST... Green-yellow ZS10-PE-R1 1SNK508151R0000 25 28.40
ZS10-R1 ZS10-PE-R1

Technical data valid for copper conductors only.
