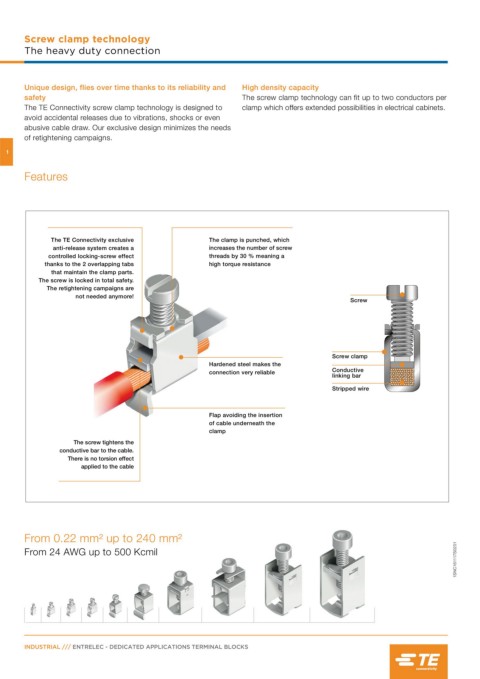

Screw clamp technology
The heavy duty connection

Unique design, flies over time thanks to its reliability and High density capacity
safety The screw clamp technology can fit up to two conductors per
The TE Connectivity screw clamp technology is designed to clamp which offers extended possibilities in electrical cabinets.
avoid accidental releases due to vibrations, shocks or even
abusive cable draw. Our exclusive design minimizes the needs
of retightening campaigns.
1

Features

The TE Connectivity exclusive The clamp is punched, which
anti-release system creates a increases the number of screw
controlled locking-screw effect threads by 30 % meaning a
thanks to the 2 overlapping tabs high torque resistance
that maintain the clamp parts.
The screw is locked in total safety.
The retightening campaigns are
not needed anymore!
Screw

Screw clamp
Hardened steel makes the
Conductive
connection very reliable
linking bar
Stripped wire

Flap avoiding the insertion
of cable underneath the
clamp
The screw tightens the
conductive bar to the cable.
There is no torsion effect
applied to the cable

From 0.22 mm² up to 240 mm²
1SNC161117S0201
From 24 AWG up to 500 Kcmil
