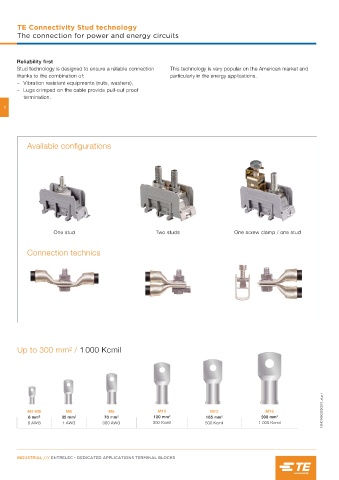

TE Connectivity Stud technology
       The connection for power and energy circuits




       Reliability first
       Stud technology is designed to ensure a reliable connection   This technology is very popular on the American market and
       thanks to the combination of:                         particularly in the energy applications.
          – Vibration resistant equipments (nuts, washers),
          – Lugs crimped on the cable provide pull-out proof
         termination.
  1






           Available configurations

















                    One stud                            Two studs                  One screw clamp / one stud



           Connection technics



















       Up to 300 mm² / 1 000 Kcmil








                                                                                                                  1SNC165028S0201_dupli


                                                        M10
           M4-M5        M6             M8                                  M12                M16
           6 mm  2     35 mm  2       70 mm 2          120 mm 2          185 mm 2            300 mm 2
           8 AWG       1 AWG         000 AWG           300 Kcmil         500 Kcmil          1 000 Kcmil
