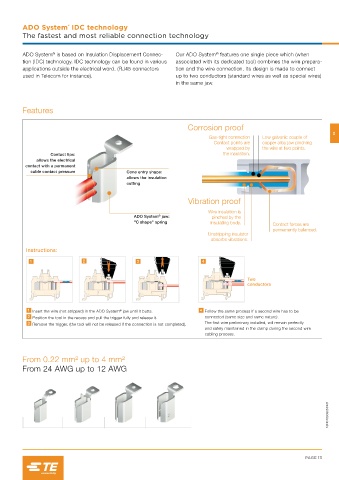

Page 305 - Entrelec Terminal Blocks Master Catalog

®
ADO System IDC technology
The fastest and most reliable connection technology

®
®
ADO System is based on Insulation Displacement Connec- Our ADO System features one single piece which (when
tion (IDC) technology. IDC technology can be found in various associated with its dedicated tool) combines the wire prepara-
applications outside the electrical word. (RJ45 connectors tion and the wire connection. Its design is made to connect
used in Telecom for instance). up to two conductors (standard wires as well as special wires)
in the same jaw.

Features

Corrosion proof
2
Gas-tight connection Low galvanic couple of
Contact points are copper alloy jaw pinching
wrapped by the wire at two points.
Contact lips: the insulation.
allows the electrical
contact with a permanent
cable contact pressure Cone entry shape:
allows the insulation
cutting

Vibration proof
Wire insulation is
ADO System jaw: pinched by the
®
"C shape" spring insulating body. Contact forces are
permanently balanced.
Unstripping insulator
absorbs vibrations.
Instructions:

1 2 3 4

Two
conductors

1 Insert the wire (not stripped) in the ADO System jaw until it butts. 4 Follow the same process if a second wire has to be
®
2 Position the tool in the recess and pull the trigger fully and release it. connected (same size and same nature).
The first wire preliminary installed, will remain perfectly
3 Remove the trigger. (the tool will not be released if the connection is not completed).
and safely maintained in the clamp during the second wire
cabling process.

From 0.22 mm² up to 4 mm²
From 24 AWG up to 12 AWG
