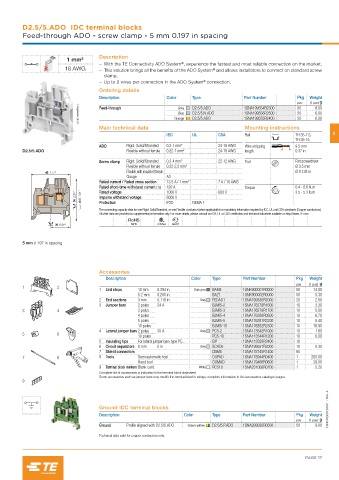

D2.5/5.ADO IDC terminal blocks
Feed-through ADO - screw clamp - 5 mm 0.197 in spacing

Description
1 mm²
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
18 AWG – This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC163068F0014 Orange D2.5/5.N.ADO 1SNA199556R2500 50 6.00
Feed-through
6.00
D2.5/5.ADO
1SNA199554R2300
50
Grey
Blue
50
D2.5/5.ADO
1SNA199555R2400
6.00
Main technical data Mounting instructions
2
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 0.2-1 mm² 24-18 AWG Wire stripping 9.5 mm
D2.5/5.ADO Flexible without ferrule 0.22-1 mm² 24-18 AWG length 0.37 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 22-12 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-2.5 mm² Ø 3.5 mm
45 1.77" Flexible with insulated ferrule Ø 0.138 in
Gauge A3
Rated current / Rated cross section 13.5 A / 1 mm² 7 A / 18 AWG
Rated short-time withstand current (1s) 120 A 600 V Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
Rated voltage
1000 V
56 2.20" 48.5 1.91" Impulse withstand voltage 8000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
23 0.91" RoHS cCSAus Gost R
5 mm 0.197 in spacing
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEDAD1 1SNA199336R2000 20 2.50
3 Jumper bars 2 poles 24 A BJMI5-2 1SNA176278R1600 10 3.30
3 4 3 poles BJMI5-3 1SNA176279R1700 10 5.00
4 poles BJMI5-4 1SNA176280R0500 10 6.70
5 poles BJMI5-5 1SNA176281R2200 10 8.40
10 poles BJMI5-10 1SNA176282R2300 10 16.90
4 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
5 6
10 poles PC5-10 1SNA113544R1200 10 6.00
5 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
6 Circuit separators 0 mm 0 in Grey SCAD5 1SNA199551R2000 10 0.30
7 Shield connectors CBM5 1SNA178745R1400 50
7 8 8 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
9 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
9

1SNC163001S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with D2.5/5.ADO Green-yellow D2.5/5.P.ADO 1SNA399030R0500 50 9.00
Technical data valid for copper conductors only.
