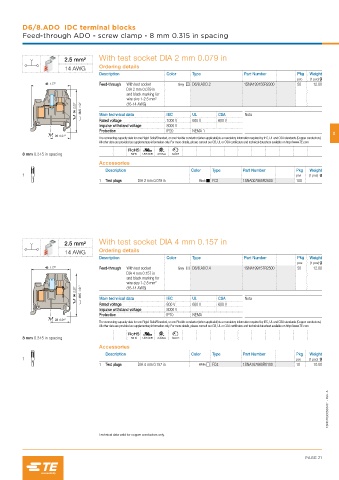

Page 313 - Entrelec Terminal Blocks Master Catalog

D6/8.ADO IDC terminal blocks
Feed-through ADO - screw clamp - 8 mm 0.315 in spacing

2.5 mm² With test socket DIA 2 mm 0.079 in
14 AWG Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
45 1.77" Feed-through With test socket Grey D6/8.ADO.2 1SNA199155R2300 50 12.00
DIA 2 mm 0.079 in
and black marking for
wire size 1-2.5 mm²
56 2.20" 48.5 1.91" Main technical data IEC UL CSA Nota
(16-14 AWG)

Rated voltage 1000 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
23 0.91" 2
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
8 mm 0.315 in spacing RoHS USR CNR cCSAus Gost R
Accessories
Description Color Type Part Number Pkg Weight
1 pce (1 pce) g
1 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

2.5 mm² With test socket DIA 4 mm 0.157 in
14 AWG Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
45 1.77" Feed-through With test socket Grey D6/8.ADO.4 1SNA199157R2500 50 12.00
DIA 4 mm 0.157 in
and black marking for
wire size 1-2.5 mm²
56 2.20" 48.5 1.91" (16-14 AWG)
Main technical data
800 V
Rated voltage IEC UL CSA Nota
600 V
600 V
Impulse withstand voltage 8000 V
Protection IP10 NEMA
23 0.91"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
8 mm 0.315 in spacing RoHS USR CNR cCSAus Gost R
Accessories
Description Color Type Part Number Pkg Weight
1 pce (1 pce) g
1 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00

1SNC163005S0201 - Rev. A
