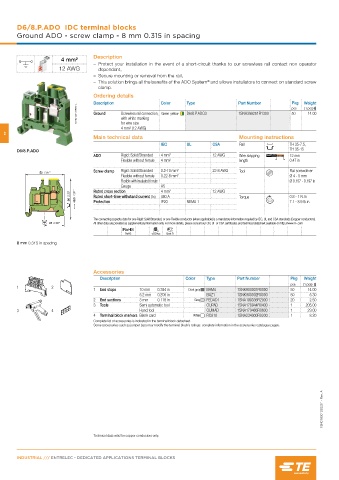

Page 318 - Entrelec Terminal Blocks Master Catalog

D6/8.P.ADO IDC terminal blocks
Ground ADO - screw clamp - 8 mm 0.315 in spacing

Description
4 mm²
– Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator
12 AWG dependent,
– Secure mounting or removal from the rail,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC163101F0014 Ground Screwless rail connection, Green-yellow D6/8.P.ADO3 1SNA399251R1300 pce 14.00
(1 pce) g
50
with white marking
for wire size
4 mm² (12 AWG)
2
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
D6/8.P.ADO
ADO Rigid: Solid/Stranded 4 mm² 12 AWG Wire stripping 12 mm
Flexible without ferrule 4 mm² length 0.47 in

50 1.97" Screw clamp Rigid: Solid/Stranded 0.2-10 mm² 22-8 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-6 mm² Ø 4 - 5 mm
Flexible with insulated ferrule Ø 0.157 - 0.197 in
Gauge A5
56 2.20" 48.5 1.91" Rated cross section 4 mm² NEMA 1 12 AWG Torque 0.8 - 1 N.m
480 A
Rated short-time withstand current (1s)
Protection
7.1 - 8.9 lb.in
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
25 0.98" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
RoHS cCSAus Gost R
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEDAD1 1SNA199336R2000 20 2.50
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
3 4 Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163012S0201 - Rev. A

Technical data valid for copper conductors only.
