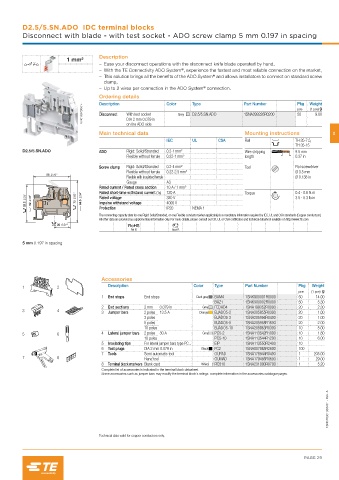

D2.5/5.SN.ADO IDC terminal blocks
Disconnect with blade - with test socket - ADO screw clamp 5 mm 0.197 in spacing

Description
1 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand,
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163072F0014 Disconnect With test socket Grey D2.5/5.SN.ADO 1SNA399226R0200 pce (1 pce) g
50
9.00
DIA 2 mm 0.079 in
on the ADO side
Main technical data Mounting instructions 2
IEC UL CSA Rail TH 35-7.5,
TH 35-15
D2.5/5.SN.ADO ADO Rigid: Solid/Stranded 0.2-1 mm² Wire stripping 9.5 mm
Flexible without ferrule 0.22-1 mm² length 0.37 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
Flexible without ferrule 0.22-2.5 mm² Ø 3.5 mm
55 2.16"
Flexible with insulated ferrule Ø 0.138 in
Gauge A3
Rated current / Rated cross section 10 A / 1 mm² Torque 0.4 - 0.6 N.m
Rated short-time withstand current (1s)
120 A
59.5 2.34" 52 2.05" 72 2.83" 64.5 2.54" Rated voltage 320 V 3.5 - 5.3 lb.in
4000 V
Impulse withstand voltage
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
23 0.91"
RoHS Gost R
5 mm 0.197 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
pce (1 pce) g
1 End stops End stops Dark grey BAM4 1SNK900001R0000 50 14.00
BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Grey FEDAD4 1SNA199352R0000 20 2.30
3 4
3 Jumper bars 2 poles 13.5 A Orange BJADO5-2 1SNA205955R0300 20 1.00
3 poles BJADO5-3 1SNA205956R0400 20 1.00
5 poles BJADO5-5 1SNA205958R1600 20 2.00
10 poles BJADO5-10 1SNA205963R0300 10 5.00
5 6 4 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
5 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
7 8 Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163013S0201 - Rev. A

Technical data valid for copper conductors only.
