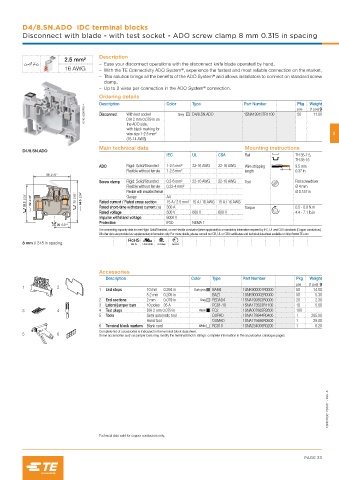

D4/8.SN.ADO IDC terminal blocks
Disconnect with blade - with test socket - ADO screw clamp 8 mm 0.315 in spacing

Description
2.5 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163087F0014 Disconnect With test socket Grey D4/8.SN.ADO 1SNA199137R1100 pce (1 pce) g
50
11.00
DIA 2 mm 0.079 in on
the ADO side,
with black marking for
wire size 1-2.5 mm² 2
(16-14 AWG)
Main technical data Mounting instructions
D4/8.SN.ADO
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² 22-16 AWG 22-16 AWG Wire stripping 9.5 mm
Flexible without ferrule 1-2.5 mm² length 0.37 in
55 2.16"
Screw clamp Rigid: Solid/Stranded 0.2-6 mm² 22-10 AWG 22-10 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-4 mm² Ø 4 mm
Flexible with insulated ferrule Ø 0.157 in
59.5 2.34" 52 2.05" 72 2.83" 64.5 2.54" Rated current / Rated cross section A4
Gauge
15 A / 2.5 mm² 15 A / 16 AWG 15 A / 16 AWG
Rated short-time withstand current (1s) 300 A Torque 0.5 - 0.8 N.m
Rated voltage 500 V 600 V 600 V 4.4 - 7.1 lb.in
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
23 0.91"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
8 mm 0.315 in spacing RoHS USR CNR cCSAus Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Grey FEDAD4 1SNA199352R0000 20 2.30
3 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
3 4 4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
6 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
5 6 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163017S0201 - Rev. A

Technical data valid for copper conductors only.
